6AG1642-0DA01-4AX0 Siemens SIMATIC HMI OP177B Display

group name: Oparator Panel

Min Order: 1 piece

brand name: VICPAS

model: 6AG1642-0DA01-4AX0

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 22:26:33 GMT

contact supplier

Paramtents

Brand Siemens
Warranty 12 Months
Product Line Siemens OP177B Operator Panel
Supply SIMATIC HMI OP177B Repair Kit
size 5.7 inch
model 6AG1642-0DA01-4AX0
parts supply touchscreen, keypad, lcd display, case housing

Packging & Delivery

Min Order1 piece

Briefing

SIMATIC OP177B LCD display, touch panel, keypad, cover case. 12-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

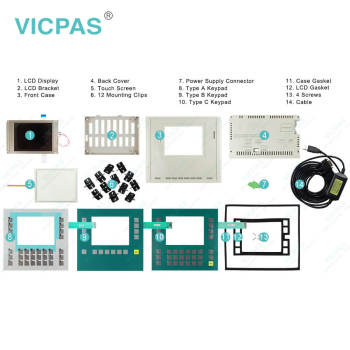

6AG1642-0DA01-4AX0 Siemens SIMATIC HMI OP177B OPERATOR PANEL Touchscreen, Membrane Keyboard, Display, LCD Bracket, Screws, Power Supply Connector, Gasket, Mounting Clips and Plastic Case Shell

Order each part separately is available

6AG1642-0DA01-4AX0 Siemens SIMATIC HMI OP177B OPERATOR PANEL Membrane Keypad, HMI Panel Glass, Display, Gasket, Display Bracket, Gasket, Mounting Clips, Screws, Power Supply Connector and Plastic Case Shell Repair Replacement

6AG1642-0DA01-4AX0 SIPLUS HMI OP 177B Touch+Key color PN/DP for medial exposure based on 6AV6642-0DA01-1AX0

Interfaces on the OP 177B HMI device
① Chassis terminal for equipotential bonding
② Power supply connector
③ RS -485/RS -422 interface (IF 1B)
④ PROFINET connection (applies to OP 177B PN/DP)
⑤ USB connection
OP 177B offers an additional feature. It can now be operated using widely available touchscreens in addition to the membrane keyboard. The function keys can be configured to system keys for specific screens.

VICPAS supply 6AG1642-0DA01-4AX0 Siemens OP177B Touch Screen Monitor, LCD Panel, Plastic Cover, Gasket, Display Bracket, Mounting Clips, Screws, Power Supply Connector and membrane keyboard with 6 months warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6AG1642-0DA01-4AX0 Siemens OP177B HMI Parts.

Part Number:	6AG1642-0DA01-4AX0
Screen diagonal:	5.7 in
Character size:	5 mm
Warranty:	6-Months Warranty
Product Line:	Siemens OP177B

Digital outputs:	16
Number of colors :	4 Blue levels
Resolution:	320 * 240
Design as touch screen:	YES
Design of display:	STN display

Related Siemens OP177B Part No. :

SIMATIC Operator panel OP177B	Description	Inventory status
6AG1642-0BC01-4AX0	OP177B PN/DP COLOR	In Stock
6AG1642-0DA01-4AX0	Siemens OP177B	In Stock
6AG1642-0DA01-4AX1	SIPLUS OP177B	In Stock
6AG1642-0DC01-4AX0	SIPLUS OP177B	In Stock
6AG1642-0DC01-4AX1	SIPLUS HMI OP177B	In Stock
6AV6551-2HA01-1AA0	SIPLUS OP177B	In Stock
6AV6642-0DA01-1AX0	SIPLUS OP177B	In Stock
6AV6642-0DA01-1AX1	SIPLUS HMI OP177B	In Stock
6AV6642-0DC01-1AX0	OP177B	In Stock
6AV6642-0DC01-1AX1	Siemens OP177B	In Stock
6AV6642-5DC10-1AC0	OP177B DP MONO	In Stock
0005-4050-710	Simatic OP177B GEA	In Stock
0005-4050-810	OP177B Simatic GEA	In Stock
0005-4050-818	Siemens OP177B GEA	In Stock
0005-4050-950	Simatic OP177B GEA	In Stock
Siemens Operator panel OP177B	Description	Inventory status

Siemens OP177B series HMI Manuals PDF Download:

6AG1642-0DA01-4AX0 SIMATIC HMI OP177B datasheet pdf

Siemens Simatic OP177B HMI operator panel keypad manual

FAQ:

Question: What is the dimension of 6AG1642-0DA01-4AX0 Siemens OP177B membrane switch??

Answer:The SIMATIC HMI OP177B touchscreen is 5.7 inch.

Question:what the software options for Siemens OP177B?

Answer:The following software options are available for the TP 177B and the OP 177B:
• WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
• WinCC Flexible/Sm@rtAccessThe Sm@rtAccess option enables you to set up communication between differentHMI systems.The following software options are available for the TP 177B 4":
• Uninterruptable Power Supply (UPS) with USB supportWhen interfacing an uninterruptible power supply, the HMI device is shut down in acontrolled manner after a buffer time in the event of a power failure. The TP 177B 4"supports SITOP DC UPS modules connected via the USB port.

Question: What is the 6AG1642-0DA01-4AX0 Siemens OP177B mebrane switch and shell HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
