Panel View 300 2711-K3A10L1 membrane keypad switch
- group name
- Panelview 300
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 2711-K3A10L1
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:27:53 GMT
Paramtents
Warranty 6 Months
Membrane Material Plastic
Size 3.5 Inch
Product Line PanelView 300
Supply PanelView 300 Membrane Keypad
model 2711-K3A5L1
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

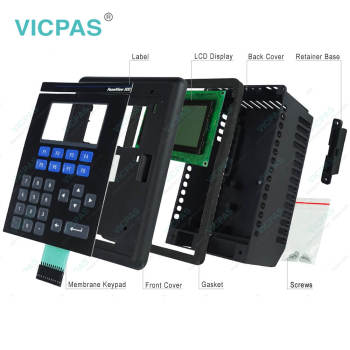

Panel View 300 2711-K3A10L1 Membrane Keyboard Keypad, HMI Case, Gasket, Label, Screws, LCD Display Screen, Memory Card Retainer Base Repair Replacement
Order each part separately is available
The 2711-K3A10L1 comes with an irreplaceable battery and a runtime application memory of 170 KB. It runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A10L1 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC). With a weight of 673 grams (1.48 pounds,) the 2711-K3A10L1 has a dimension of 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The 2711-K3A10L1’s operating temperature is between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), and its storage temperature is between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range from 5 to 95% noncondensing at 0-55 degrees Celsius (32-131 degrees Fahrenheit) working temperature. It has a Shock rating of 30g and operational vibration of 2g.
The 2711-K3A10L1 is an electronic operator interface that provides functionality through color, grayscale or monochrome displays and through pixel graphics. The PanelView Standard 300 is available in several varieties of sizes and configurations to meet specific application requirements.
All these variations improve operator productivity and simplify the programming process. The 2711-K3A10L1 Panelview Standard 300 has an Operator keypad input with eight function keys and an LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, and the LED backlight has a standby life of 100,000 hours.
VICPAS supply AB 2711-K3A10L1 keypad switch, Plastic Cover Body, Memory Card Retainer Base, LCD Screen, Gasket, Label, Screws HMI parts, membrane keypad switch, LCD display. All of them with VICPAS 180 days warranty and support Urgent Worldwide Shipping.
Product Video:
The video below describes the product details of the Panel View 300 2711-K3A10L1 membrane keypad switch, LCD Display Panel, Housing, Gasket, Label, Memory Card Retainer Base, Screws
Specifications:
The table below describes the parameters of the 2711-K3A10L1 PanelView 300 membrane keypad switch.
| Part Number : | 2711-K3A10L1 |
| Product Line: | PanelView 300 |
| Screen diagonal | 3 in |
| Warranty: | 6 mouths Warranty |
| Input Power | 24 VDC |
| Software: | Panelbuilder 32 |
| Mounting position: | vertical |
| Design as touch screen: | No |
| Keyboard fonts: | US English |
| Firmware | 4.00-4.48 |
Related PanelView 300 Series Part No. :
| PanelView 300 | Description | Inventory status |
| 2711-K3A10L1 | PanelView 300 Membrane Keypad Switch | In Stock |
| 2711-K3A17L1 | PanelView 300 Membrane Keyboard Keypad | Available Now |
| 2711-K3A2L1 | Allen Bradley PanelView 300 Keypad Switch | In Stock |
| 2711-K3A5L1 | PanelView 300 Membrane Keypad Keyboard | Available Now |
| 2711-K3A5L1K | Allen Bradley Panel View 300 HMI Parts Repair | In Stock |
| 2711-M3A18L1 | PanelView 300 Membrane Keyboard Keypad | Available Now |
| 2711-M3A19L1 | Allen Bradley PanelView 300 Micro Operator Interface Parts | Available Now |
| Panel View 300 | Description | Inventory status |
FAQ:
Question:How many function keys are on the 2711-K3A10L1 membrane keypad?
Answer:The 2711-K3A10L1 PanelView 300 Terminal has 8 keypad function keys.
Question: WDoes the 2711-K3A10L1 PanelView 300 Terminal have a replacement backlinght?
Answer:No, the 2711-K3A10L1 PanelView 300 Terminal's backlight is non-replaceable.
Question: What is the 2711-K3A10L1 PanelView 300 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
