2711-K3A2L1 PanelView 300 Membrane Keyboard Keypad

Order each part separately is available

The PanelView Standard 300 is an electronic operator interface that provides functionality with a color, grayscale or monochrome display and shows pixel graphics capabilities. 2711-K3A2L1 is available in several sizes and configurations to meet specific application requirements. All these variations improve operator productivity and simplify programming. The 22711-K3A2L1 is an Allen-Bradley product that has an Operator input keypad with eight function keys (F1 to F8) and an LCD monochrome colordisplay, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED backlight standby life. The 2711-K3A2L1 has an irreplaceable battery, and a runtime application memory of 170 KB, which runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A2L1 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).

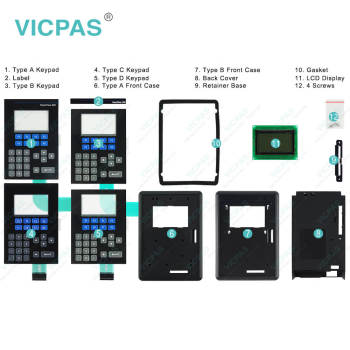

VICPAS supply 2711-K3A2L1 Panelview 300 membrane keypad switch, LCD Display Panel, Housing, Gasket, Label, Memory Card Retainer Base, Screws. All of them with VICPAS 180 days warranty and support Urgent Worldwide Shipping.
With a weight of 673/1.48 grams/pounds, the 2711-K3A2L1 has a dimension of 197 x 140 x 82/7.76 x 5.53 x 3.21 millimeters/inches (length, breadth, and height). The 2711-K3A2L1 has an operating temperature between 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit), a storage temperature between -20 to 85 degrees Celsius (-4 to 185 degrees Fahrenheit), and a working relative humidity range between 5 to 95% noncondensing at 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) working temperature. It has a shock rating of 30 g, and operational vibration of 2 g. The approximate shipping weight and dimensions are 3 pounds and 11 x 8 x 6 inches and the most common Series are A and B and the most common firmware include 4.00-4.48.
