Membrane keyboard for 2711P-K12C4A2 membrane keypad switch

Membrane keyboard for 2711P-K12C4A2 membrane keypad switch
Membrane keyboard for 2711P-K12C4A2 membrane keypad switchMembrane keyboard for 2711P-K12C4A2 membrane keypad switchMembrane keyboard for 2711P-K12C4A2 membrane keypad switchMembrane keyboard for 2711P-K12C4A2 membrane keypad switchMembrane keyboard for 2711P-K12C4A2 membrane keypad switch
group name
Panelview Plus 1250
Min Order
1 piece
brand name
VICPAS
model
2711P-K12C4A2
Nearest port for product export
Guangzhou, Hongknog, Shenzhen, Taiwan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Thu, 21 Nov 2024 21:12:16 GMT

Paramtents

  • Warranty 180 Days

  • Brand Rockwell Automation Allen Bradley

  • Product Line Panelview Plus 1250 Terminals Membrane keypad

  • Supply China

  • Size 12.1 inch

  • model 2711P-K12C4A2

  • Parts Keypad Switch Front Cover LCD Display

Packging & Delivery

  • Min Order1 piece

Briefing

2711P-K12C4A2 Membrane Keyboard Keypad Plastic Case LCD Screen. 365-day Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

2711P-K12C4A2 Panelview Plus 1250 Terminals Membrane Keypad, Protection Board, Label, HMI Case, LCD Display Screen, Gasket Repair Replacement

Order each part separately is available

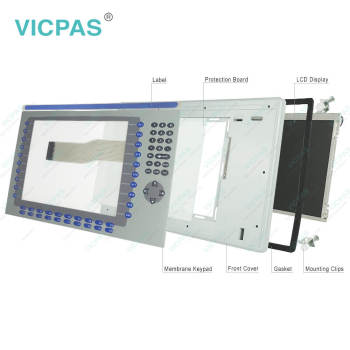

2711P-K12C4A2 Panelview Plus 1250 Terminals Membrane Keypad, Protection Board, Label, Plastic Case, LCD Display, Gasket and Mounting Clips Repair Replacement


The Allen-Bradley 2711P-K12C4A2 Panelview Plus 1250 has a display size of 12.1 inches with a color display type. It features a serial or Ethernet communication type. It also features a keypad input type. The FactoryTalk software comes already installed and activated and this reduces development time. FactoryTalk software gives the user a clear view of controlling and monitoring applications.


The internal CompactFlash for PanelView Plus CE terminals consists of the flash memory, of the open Windows CE OS, and of the FactoryTalk View software (Machine Edition). The internal CompactFlash for 2711P-K12C4A2 PanelView Plus terminal includes the flash memory and the open Windows CE operating system.


The display size for the 2711P-K12C4A2 is 12.1 inches and the communication port is Serial or Ethernet. When repairing the part, it is replaced by a PanelView Plus CE unit with DC input it the external AC-to-DC power supply was not returned. The 2711P-K12C4A2 PanelView Plus CE 1250 Keypad Part is manufactured by Rockwell Automation/Allen-Bradley for industrial computers and operating terminals.


The Allen-Bradley 2711P-K12C4A2 PanelView Plus Keypad comes with an external AC-to-DC power supply. The Allen-Bradley 2711P-K12C4A2 PanelView Plus CE Keypad can be upgraded to the new Allen-Bradley 2711P-K12C4A2 PanelView Plus 6 Keypad. The input power for the 2711P-K12C4A2 is 85 to 264 Volts AC and it also supports 18 to 32 Volts DC. The shipping dimensions for the 2711P-K12C4A2 are 11.12 × 16.36 × 2.17 inches.




Specifications:

The table below describes the parameters of the Panelview Plus 1250 2711P-K12C4A2 terminals Parts.

Part Number: 2711P-K12C4A2
Display Size: 12.1 inches
Display Color: Amber
Warranty: 180 days Warranty
Product Line: Panelview Plus 1250
Input Type: Keypad
Mounting Position: vertical
Communication: Ethernet and RS-232
Communication: ControlNet
Software: FactoryTalk


Related Allen Bradley Panelview Plus 1250 Terminals Part No. :

PanelView Plus 1250 HMI Description Inventory status
2711P-K12C4A1 PanelView Plus 1250 Membrane Keyboard LCD Display Plastic Shell Repair Kit In Stock
2711P-K12C4A2 PanelView Plus 1250 Membrane Keyboard Keypad LCD Display Panel Enclosure Available Now
2711P-K12C4A6 Allen Bradley Panel Plus 1250 Membrane Keypad LCD Screen Plastic Cover Body In Stock
2711P-K12C4A7 Allen Bradley Panel View Plus 1250 Keypad LCD Display Enclosure Repalcement In Stock
2711P-K12C4B1 PanelView Plus 1250 Membrane Switch LCD Display Screen Plastic Cover Body In Stock
2711P-K12C4B2 PanelView Plus 1250 Membrane Keyboard Keypad LCD Display Screen HMI Case In Stock
2711P-K12C4D1 PanelView Plus 1250 Membrane Keypad Switch LCD Display Housing Repair Kit Available Now
2711P-K12C4D2 Allen Bradley PanelView Plus 1250 Operator Panel Keypad LCD Screen HMI Case In Stock
2711P-K12C4D6 PanelView Plus 1250 Operator Keyboard LCD Display Housing Replacement Available Now
2711P-K12C4D7 Allen Bradley Panel View Plus 1250 Keyboard Membrane LCD Screen Plastic Shell In Stock
2711P-K12C6A1 Allen Bradley Panel View Plus 1250 Keypad Membrane LCD Display Housing In Stock
2711P-K12C6A2 PanelView Plus 1250 Switch Membrane Enclosure LCD Display Panel Replacement In Stock
2711P-K12C6A6 PanelView Plus 1250 Plastic Shell LCD Display Screen Keypad Repair Kit Available Now
2711P-K12C6A7 Allen Bradley PanelView Plus 1250 Membrane Keyboard LCD Display Housing In Stock
2711P-K12C6B1 PanelView Plus 1250 Membrane Keyboard Keypad LCD Screen HMI Case Repair Available Now
2711P-K12C6B2 Allen Bradley Panel View Plus 1250 Operator Panel Keypad LCD Display Enclosure In Stock
AB PanelView Plus 1250 Description Inventory status

AB Panelview Plus 1250 Manuals PDF Download:

  • 2711P-K12C4A2 Terminals User Manuals
  • Allen Bradley PanelView Plus 1250 Terminals Operator Panel User Manual
  • panelview plus 1250 battery replacement Installation Instructions
  • PanelView Plus 1250 Terminals and Display Modules
  • PanelView Plus Operator Terminals 1250 dimensions datasheet manual


  • FAQ:

    Question: What tools are required for 2711P-K12C4A2 installation?

    Answer:

  • Panel cutout tools.
  • Small, slotted screwdriver.
  • Torque wrench (lb•in) for tightening the mounting clips on thePanelView Plus 700 to 1500 and PanelView Plus CE terminals.

  • Question: How to connect the terminal 2711P-K12C4A2 to DC power?

    Answer:
    1. Verify that the terminal is not connected to a power source.
    2. Secure the DC power wires to the terminal block.
    Follow the markings on terminal blocks and terminal for proper connections.
    3. Secure the earth/ground wire.
    • On the 400 and 600 terminals, secure the earth/ground wire to the functional earth/ground terminal on the input power terminal block.
    • On the 700 to 1500 terminals, secure the earth/ground wire to the earth/ground terminal screw at the bottom of the display.4. Apply 24V DC power to the terminal.


    Question: What is the size of 2711P-K12C4A2 Membrane Keyboard?

    Answer: The 2711P-K12C4A2 keypad is 12.1-inch.


    Question: PanelView Plus 1250 2711P-K12C4A2 terminals Wiring and Safety Guidelines

    Answer: Use publication NFPA 70E, Electrical Safety Requirements forEmployee Workplaces when wiring the PanelView Plus terminals. In addition to the NFPA general guidelines:

    • • route communication cables to terminal by a separate path from incoming power:

    • IMPORTANT Do not run signal wiring and power wiring in the same conduit.

    • • where power and communication lines must cross, they should cross at right angles. Communication lines can be installed in the same conduit as low level DC I/O lines (less than 10 volts).
    • • shield and ground cables appropriately to avoid Electromagnetic Interference (EMI).Grounding minimizes noise from EMI and is a safety measure in electrical installations.
    • • use the National Electric Code published by the National Fire Protection Association as a source for grounding.
