2711P-K12C4D1 Membrane Keypad Keyboard Repair
- group name
- Panelview Plus 1250
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 2711P-K12C4D1
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:03:06 GMT
Paramtents
Warranty 180 Days
Brand Rockwell Automation Allen Bradley
Product Line Panelview Plus 1250
Supply Panelview Plus 1250 Terminals Membrane keypad
Size 12.1 inch
model 2711P-K12C4D1
Parts Keypad Switch Plastic Case LCD Display
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

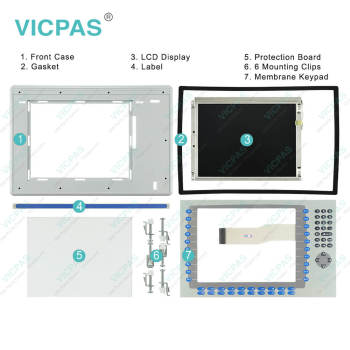

2711P-K12C4D1 Panelview Plus 1250 Terminals Membrane Keypad, Protection Board, Label, LCD Display Screen, Plastic Cover, Gasket Repair Replacement
Order each part separately is available
This 2711P-K12C4D1 logic module comes standard with RS-232 and Ethernet serial ports. The function of the Ethernet port is to support Ethernet options and EtherNet/IP using KEPServer drivers. The RAM and the compact flash memory come in different sizes. The users can order them separately or they can order them bundled with the 2711P-K12C4D1 PanelView Plus CE terminal or bundled with the logic module for the PanelView Plus terminal.
The base unit terminal has a built-in Ethernet and RS-232 communication ports and the communication module known as the 2711P-RN20 provides an additional Ethernet port, a Standard Communication (Ethernet and RS-232) port, and scheduled and unscheduled communication capabilities.
The 2711P-K12C4D1 PanelView Plus provides an open platform which allows the users to easily access the Windows CE desktop suite. This additional functionality can be used to access production schedules from the user’s terminal, saving time by allowing the manuals to be viewed directly on the user’s screen, allowing remote access to the 2711P-K12C4D1 with VNC (Virtual Network Computing), and improving the machine control while simplifying setup with a live video with a live camera.
The internal CompactFlash for PanelView Plus CE terminals consists of the flash memory, of the open Windows CE OS, and of the FactoryTalk View software (Machine Edition). The internal CompactFlash for 2711P-K12C4D1 PanelView Plus terminal includes the flash memory and the open Windows CE operating system.
Specifications:
The table below describes the parameters of the Panelview Plus 1250 2711P-K12C4D1 terminals Parts.
| Part Number: | 2711P-K12C4D1 |
| Display Size: | 12.1 inches |
| Display Color: | Amber |
| Warranty: | 180 days Warranty |
| Product Line: | Panelview Plus 1250 |
| Input Type: | Keypad |
| Mounting Position: | vertical |
| Communication: | Ethernet and RS-232 |
| Communication: | ControlNet |
| Software: | FactoryTalk |
Related Allen Bradley Panelview Plus 1250 Terminals Part No. :
| PanelView Plus 1250 HMI | Description | Inventory status |
| 2711P-K12C4A1 | PanelView Plus 1250 Membrane Keyboard LCD Display Plastic Shell Repair Kit | In Stock |
| 2711P-K12C4A2 | PanelView Plus 1250 Membrane Keyboard Keypad LCD Display Panel Enclosure | Available Now |
| 2711P-K12C4A6 | Allen Bradley Panel Plus 1250 Membrane Keypad LCD Screen Plastic Cover Body | In Stock |
| 2711P-K12C4A7 | Allen Bradley Panel View Plus 1250 Keypad LCD Display Enclosure Repalcement | In Stock |
| 2711P-K12C4B1 | PanelView Plus 1250 Membrane Switch LCD Display Screen Plastic Cover Body | In Stock |
| 2711P-K12C4B2 | PanelView Plus 1250 Membrane Keyboard Keypad LCD Display Screen HMI Case | In Stock |
| 2711P-K12C4D1 | PanelView Plus 1250 Membrane Keypad Switch LCD Display Housing Repair Kit | Available Now |
| 2711P-K12C4D2 | Allen Bradley PanelView Plus 1250 Operator Panel Keypad LCD Screen HMI Case | In Stock |
| 2711P-K12C4D6 | PanelView Plus 1250 Operator Keyboard LCD Display Housing Replacement | Available Now |
| 2711P-K12C4D7 | Allen Bradley Panel View Plus 1250 Keyboard Membrane LCD Screen Plastic Shell | In Stock |
| 2711P-K12C6A1 | Allen Bradley Panel View Plus 1250 Keypad Membrane LCD Display Housing | In Stock |
| 2711P-K12C6A2 | PanelView Plus 1250 Switch Membrane Enclosure LCD Display Panel Replacement | In Stock |
| 2711P-K12C6A6 | PanelView Plus 1250 Plastic Shell LCD Display Screen Keypad Repair Kit | Available Now |
| 2711P-K12C6A7 | Allen Bradley PanelView Plus 1250 Membrane Keyboard LCD Display Housing | In Stock |
| 2711P-K12C6B1 | PanelView Plus 1250 Membrane Keyboard Keypad LCD Screen HMI Case Repair | Available Now |
| 2711P-K12C6B2 | Allen Bradley Panel View Plus 1250 Operator Panel Keypad LCD Display Enclosure | In Stock |
| AB PanelView Plus 1250 | Description | Inventory status |
AB Panelview Plus 1250 Manuals PDF Download:
FAQ:
Question: What steps need to be connectted the terminal 2711P-K12C4D1 to AC power?
Answer:
1. Verify that the terminal is not connected to a power source.2. Secure the AC power wires to the terminal block.
Follow the markings on terminal blocks and terminal for proper connections.
3. Secure the protective earth/ground wire to the marked position of the power input terminal block.
4. On the 700 to 1500 devices, also secure the functional earth/ground wire to the functional earth terminal screw on the back of the display to ground bus.
5. Apply AC power to the terminal.
Question: How to delete Log Files from Terminal 2711P-K12C4D1?
Answer:
You can delete log files, alarm history files, and alarm status files from the System Default location on the terminal.
1. Select Terminal Settings>File Management>Delete Files>Delete Log Files.
You are asked to confirm the deletion of the files.
Do you want to delete all of the FactoryTalk View ME Station Log Files?
2. Select Yes or No.Log files not located in the System Default location will not be deleted.
Question: How to set the Panelview Plus 1250 terminals Screen Saver?
Answer: Terminal Settings > Display > Screen Saver
The Screen Saver screen lets you:
• disable the screen saver
• enable the screen saver after the selected idle time
• adjust the brightness of the screen saver
