Panasonic AIG32MQ05D Panel Glass Protective Film
- group name
- Panasonic GT Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- AIG32MQ05D
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 16:48:13 GMT
Paramtents
Brand Panasonic
Size 5.7 inch
Warranty 365 Days
Product Line Panasonic GT32 Series
Supply GT32 GT32M Touch Screen and Overlay
Part Number AIG32MQ05D
Shipping 2-4 workdays
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

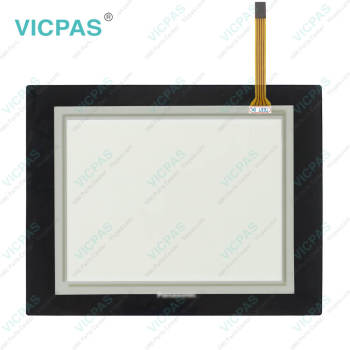

Panasonic GT32 GT32M AIG32MQ05D Front Overlay Touch Panel Replacement
Order each part separately is available
Precautions when connecting Panasonic GT AIG32MQ05D
-If noise is a problem, use a shielded cable and employ countermeasures such as installing a ferrite core if necessary. Also, take measures so that the shielding doesn't peel off and noise such as static electricity does not interfere.
-The number of AIG32MQ05D Touch Screen Panel Glass Front Overlay units, transmission distance and baud rate may differ depending on the device connected. Verify with the AIG32MQ05D Touch Panel Protective Film device being used.
-The maximum cable length for RS232C type is 15 m, also RS422 (5 V) type is 30 m.
-The maximum transmission distance is 500 m for the 24 V RS422 type.
-When connecting to the RS485, it may not be connected depending on the timing for switching between the transmission and reception at the external device. Please check it using the actual equipment.
The Panasonic GT32 GT32M AIG32MQ05D Protective Film Touch Digitizer Glass terminal unit setting varies according to the external device to be connected. Confirm it before setting a AIG32MQ05D HMI Panel Glass Front Overlay terminal unit.
Specifications:
The table below describes the parameters of the Panasonic GT32 AIG32MQ05D Touch Screen Monitor Front Overlay HMI Parts.
| Backlight: | CFL |
| Brand: | Panasonic |
| Warranty: | 365 Days |
| Product Line: | Panasonic GT32 |
| Resolution: | 320 (W) × 240 (H) dots |
| Ambient temperature: | 0 to +50 °C +32 to +122 °F |
| Display Type: | STN monochrome LCD |
| Part Number: | AIG32MQ05D |
| Power supply: | 24 V DC |
| Touch Size: | 5.7" |
Related Panasonic GT Series HMI Part No. :
| Panasonic GT32 | Description | Inventory status |
| AIG32MQ02D | Panasonic GT32M Touch Screen Protective Film Replacement | In Stock |
| AIG32MQ03D | Panasonic GT32 GT32M Touch Panel Protective Film Repair | Available Now |
| AIG32MQ04D | Panasonic GT32 GT32M Touchscreen Protective Film Repair | In Stock |
| AIG32MQ05D | Panasonic GT32 GT32M HMI Touch Screen Glass Protective Film | Available Now |
| AIG32TQ02D | Panasonic GT32 GT32T0 Touch Screen Panel Front Overlay Repair | In Stock |
| AIG32TQ03D | Panasonic GT32 GT32T0 Front Overlay Touch Membrane | In Stock |
| AIG32TQ04D | Panasonic GT32 GT32T0 Touch Glass Front Overlay Repair | In Stock |
| AIG32TQ05D | Panasonic GT32 GT32T0 Touch Digitizer Glass Overlay Repair | Available Now |
| AIG32TQ12D | Panasonic GT32 GT32T1 HMI Panel Glass Protective Film | Available Now |
| AIG32TQ13D | Panasonic GT32 GT32T1 Touch Screen Monitor Front Overlay | In Stock |
| AIG32TQ14D | Panasonic GT32 GT32T1 MMI Touch Screen Front Overlay Replacement | In Stock |
| AIG32TQ15D | Panasonic GT32 GT32T1 HMI Touch Screen Protective Film | In Stock |
| Panasonic GT32 | Description | Inventory status |
Panasonic GT Series HMI Manuals PDF Download:
FAQ:
Question: What to DO If Panasonic GT32 GT32M AIG32MQ05D Touch Screen is blank？
Answer:
1) Power is not on.
Supply the power supply to the Panasonic AIG32MQ05D Touch Digitizer Glass Protective Film unit as per specifications.
2) (When only lamp and message parts are configured to the base screen) Value of substitute reference device value does not exist in substitute data.
Check the address of the substitute reference device and the device values on the PLC side.
Question: What to DO If Panasonic AIG32MQ05D Touch Screen Panel is dim？
Answer:
1) The power voltage may be low.
Check the capacity of the power supply unit if it is enough for the GT's power consumption.
2) The contrast is set too low.
Bring up the system menu and adjust the contrast.
3) The AIG32MQ05D backlight is off due to the [Backlight Auto-off] setting in the [Setup] of the GT configuration settings in GTWIN.
Touching any area of the AIG32MQ05D screen lights that area. If a switch part is set on the touched area, the area will not light even if touched. To change the setting, change the content of the backlight auto-off settings.
Common misspellings:
AIG32M05DIG32MQ05D
AIG32MQ50D
A1G32MQ05D
AIG32MMQ05D
