Pro-face PFXGP4501TMA PFXGP4501TMD Panel Glass Overlay
- group name
- GP4000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- PFXGP4501TMA PFXGP4501TMD
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 17:06:33 GMT
Paramtents
Brand Proface
Size 10.4 inch
Warranty 365 Days
Product Line Proface GP4000 Series
Supply GP-4501T Touch Digitizer Glass Front Overlay
Shipping 2-4 workdays
Part Number PFXGP4501TMA PFXGP4501TMD
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Proface GP4000 GP-4501T PFXGP4501TMA PFXGP4501TMD HMI Panel Glass Protective Film

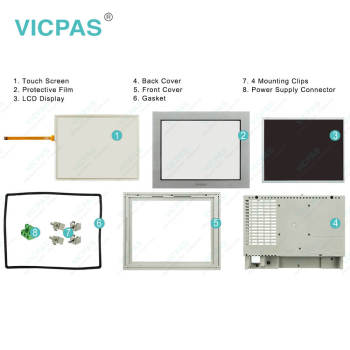

Order each part separately is available
GP-4501T PFXGP4501TMA PFXGP4501TMD Protective Film HMI Panel Glass machine Features
• 65k Color, Clear, Bright, High-Resolution TFT Display
• Energy Efficient LED Display
• No Grid Analog Touch Panel for Improved Visibility and Precise Part Placement
• Supports different types of Protocol Drivers (communicates to two selected drivers)
• Separate front & rear module for quick installation in 22mm hole
• 10/100 Base-T Ethernet, and USB
This dedicated operator interface GP-4501T PFXGP4501TMA PFXGP4501TMD touch screen is ideal for OEMs and high graphical detail applications. It is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear QVGA display of this GP-4501T PFXGP4501TMA PFXGP4501TMD Touch Digitizer Glass Protective Film model is complemented with a large viewing area, and no grid analog for improved visibility and precise part placement.
A host of GP-4501T PFXGP4501TMA PFXGP4501TMD Front Overlay Touch Panel Terminal features include Ethernet, USB, and RS232, 422, 485 serial ports. The extensive network connectivity allows support of up to two simultaneous protocols making this a highly versatile operator interface.
Specifications:
The table below describes the parameters of the Proface GP4000 GP-4501T PFXGP4501TMA PFXGP4501TMD Protective Film Touch Digitizer HMI Parts.
| Ambient Humidity: | 10 to 90 % RH |
| Backlight: | White LED |
| Brand: | Proface |
| Product Line: | Proface GP4000 |
| Touch Size: | 10.4" |
| Display Colors: | 65,536 Colors |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Resolution: | 640 x 480 pixels |
| Warranty: | 12-Month Warranty |
Related Proface GP4000 Series Part No. :
| Proface GP4000 | Description | Inventory status |
| GP-4401T PFXGP4401TAD | Proface GP4000 GP-4401T Touch Screen Monitor Front Overlay | In Stock |
| GP-4401T PFXGP4401TADR | Proface GP4000 GP-4401T Protective Film Touch Screen Replacement | In Stock |
| GP-4401WW PFXGP4401WADW | Proface GP4000 GP-4401WW Touch Panel Protective Film Repair | Available Now |
| GP-4402WW PFXGP4402WADW | Proface GP4000 GP-4402WW Touchscreen Protective Film Repair | In Stock |
| GP-4501T PFXGP4501TAA | Proface GP4000 GP-4501T HMI Touch Screen Glass Protective Film | Available Now |
| GP-4501T PFXGP4501TAAC | Proface GP4000 GP-4501T Touch Screen Panel Front Overlay Repair | In Stock |
| GP-4501T PFXGP4501TAD | Proface GP4000 GP-4501T Front Overlay Touch Membrane | In Stock |
| GP-4501T PFXGP4501TADC | Proface GP4000 GP-4501T Touch Glass Front Overlay Repair | In Stock |
| GP-4501T PFXGP4501TADR | Proface GP4000 GP-4501T Touch Digitizer Glass Overlay Repair | Available Now |
| GP-4501T PFXGP4501TMA | Proface GP4000 GP-4501T HMI Panel Glass Protective Film | Available Now |
| GP-4501T PFXGP4501TMD | Proface GP4000 GP-4501T HMI Touch Screen Protective Film | In Stock |
| GP-4501TW PFXGP4501TADW | Proface GP4000 GP-4501TW MMI Touch Screen Front Overlay Replacement | In Stock |
| GP-4502WW PFXGP4502WADW | Proface GP4000 GP-4502WW Front Overlay HMI Touch Screen Glass | Available Now |
| GP-4503T PFXGP4503TAD | Proface GP4000 GP-4503T Touch Screen Panel Protective Film Repair | In Stock |
| Proface GP4000 | Description | Inventory status |
Proface GP4000 Series HMI Manuals PDF Download:
FAQ:
Question: How to install the GP-4501T PFXGP4501TMA PFXGP4501TMD Touch Screen Monitor Front Overlay Terminal Installation Gasket
Cause:
1. Place the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Protective Film Touch Digitizer Glass unit on a flat, level surface, with the display face pointing down.
2. Remove the gasket from the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Front Overlay Touch Panel unit.
3. Attach the new gasket to the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Touchscreen Panel Protective Film unit. Position the GP-4501T PFXGP4501TMA PFXGP4501TMD gasket in the installation groove so that the GP-4501T PFXGP4501TMA PFXGP4501TMD gasket seam is at the bottom of the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Touch Screen Front Overlay unit. First, insert the gasket into the 4 corners, in the order shown in the image below. Then, insert the rest of the gasket into the installation groove.
NOTE:
The center of the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Front Overlay HMI Panel Glass unit bezel's installation groove is ribbed. Make sure you insert the GP-4501T PFXGP4501TMA PFXGP4501TMD gasket all the way in without catching the ribbed sections.
When using a tool to insert the GP-4501T PFXGP4501TMA PFXGP4501TMD gasket, make sure the tool does not catch the rubber gasket and cause a tear.
4. The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP GP-4501T PFXGP4501TMA PFXGP4501TMD Touch Screen Panel Glass Protectuve Film unit into a panel.
The GP-4501T PFXGP4501TMA PFXGP4501TMD gasket must be inserted correctly into the groove for IP65F moisture resistance for the GP unit.
