Pro-face GP-4601T PFXGP4601TAA Front Overlay Panel Glass
- group name
- GP4000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- GP-4601T PFXGP4601TAA
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 16:32:32 GMT
Paramtents
Brand Proface
Size 12.1 inch
Warranty 365 Days
Product Line Proface GP4000 Series
Supply GP-4601T Front Overlay Touch Digitizer Glass
Shipping 2-4 workdays
Part Number GP-4601T PFXGP4601TAA
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

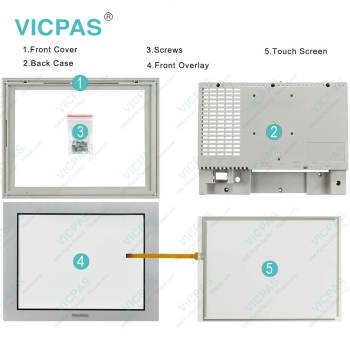

Proface GP4000 GP-4601T PFXGP4601TAA HMI Panel Glass Protective Film and Cover Case Repair
Order each part separately is available
This dedicated operator interface GP-4601T PFXGP4601TAA touch screen is ideal for OEMs and high graphical detail applications. It is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear QVGA display of this GGP-4601T PFXGP4601TAA Protective Film, Shell Cover, Touch Digitizer and Screws model is complemented with a large viewing area, and no grid analog for improved visibility and precise part placement.
A host of GP-4601T PFXGP4601TAA Front Case, Screws, Back Cover, Front Overlay and Touch Membrane Terminal features include Ethernet, USB, and RS232, 422, 485 serial ports. The extensive network connectivity allows support of up to two simultaneous protocols making this a highly versatile operator interface.
GP-4601T PFXGP4601TAA Housing, Protective Film, HMI Panel Glass and Screws machine Features
• 65k Color, Clear, Bright, High-Resolution TFT Display
• Energy Efficient LED Display
• No Grid Analog Touch Panel for Improved Visibility and Precise Part Placement
• Supports different types of Protocol Drivers (communicates to two selected drivers)
• Separate front & rear module for quick installation in 22mm hole
• 10/100 Base-T Ethernet, and USB
Specifications:
The table below describes the parameters of the Proface GP4000 GP-4601T PFXGP4601TAA Touch Digitizer Protective Film HMI Parts.
| Ambient Humidity: | 10 to 90 % RH |
| Backlight: | White LED |
| Brand: | Proface |
| Product Line: | Proface GP4000 |
| Touch Size: | 12.1" |
| Display Colors: | 65,536 colors |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Resolution: | 800 x 600 pixels |
| Warranty: | 12-Month Warranty |
Related Proface GP4000 Series Part No. :
| Proface GP4000 | Description | Inventory status |
| GP-4601T PFXGP4601TAA | Proface GP4000 GP-4601T Touch Screen Monitor Front Overlay | In Stock |
| GP-4601T PFXGP4601TAAC | Proface GP4000 GP-4601T Protective Film Touch Screen Replacement | In Stock |
| GP-4601T PFXGP4601TAD | Proface GP4000 GP-4601T Touch Panel Protective Film Repair | Available Now |
| GP-4601T PFXGP4601TADC | Proface GP4000 GP-4601T Touchscreen Protective Film Repair | In Stock |
| GP-4601T PFXGP4601TADR | Proface GP4000 GP-4601T HMI Touch Screen Glass Protective Film | Available Now |
| GP-4601T PFXGP4601TMA | Proface GP4000 GP-4601T Touch Screen Panel Front Overlay Repair | In Stock |
| GP-4601T PFXGP4601TMD | Proface GP4000 GP-4601T Front Overlay Touch Membrane | In Stock |
| GP-4603T PFXGP4603TAD | Proface GP4000 GP-4603T Touch Glass Front Overlay Repair | In Stock |
| GC-4401W PFXGE4401WAD | Proface GP4000 GC-4401W Touch Digitizer Glass Overlay Repair | Available Now |
| GC-4408W PFXGE4408WAD | Proface GP4000 GC-4408W HMI Panel Glass Protective Film | Available Now |
| Proface GP4000 | Description | Inventory status |
Proface GP4000 Series HMI Manuals PDF Download:
FAQ:
Question: How to install the GP-4601T PFXGP4601TAA Touch Screen Monitor Front Overlay Terminal Installation Gasket
Cause:
1. Place the GP GP-4601T PFXGP4601TAA Protective Film Touch Digitizer Glass unit on a flat, level surface, with the display face pointing down.
2. Remove the gasket from the GP GP-4601T PFXGP4601TAA Front Overlay Touch Panel unit.
3. Attach the new gasket to the GP GP-4601T PFXGP4601TAA Touchscreen Panel Protective Film unit. Position the GP-4601T PFXGP4601TAA gasket in the installation groove so that the GP-4601T PFXGP4601TAA gasket seam is at the bottom of the GP GP-4601T PFXGP4601TAA Touch Screen Front Overlay unit. First, insert the gasket into the 4 corners, in the order shown in the image below. Then, insert the rest of the gasket into the installation groove.
NOTE:
The center of the GP GP-4601T PFXGP4601TAA Front Overlay HMI Panel Glass unit bezel's installation groove is ribbed. Make sure you insert the GP-4601T PFXGP4601TAA gasket all the way in without catching the ribbed sections.
When using a tool to insert the GP-4601T PFXGP4601TAA gasket, make sure the tool does not catch the rubber gasket and cause a tear.
4. The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP GP-4601T PFXGP4601TAA Touch Screen Panel Glass Protectuve Film unit into a panel.
The GP-4601T PFXGP4601TAA gasket must be inserted correctly into the groove for IP65F moisture resistance for the GP unit.
Common misspellings:
GP-4601T PFXGP401TAAGP-601T PFXGP4601TAA
GP-4601T PFXGP4610TAA
GP-4601T PFXGP46017AA
GP-46601T PFXGP4601TAA
