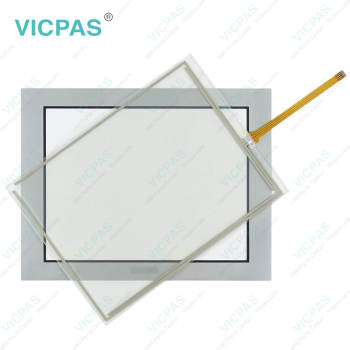

Pro-face GP-4603T PFXGP4603TAD Panel Glass Front Overlay
- group name
- GP4000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- GP-4603T PFXGP4603TAD
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 16:29:43 GMT
Paramtents
Brand Proface
Size 12.1 inch
Warranty 365 Days
Product Line Proface GP4000 Series
Supply GP-4603T Touch Digitizer Glass Front Overlay
Shipping 2-4 workdays
Part Number GP-4603T PFXGP4603TAD
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Proface GP4000 GP-4603T PFXGP4603TAD HMI Panel Glass Protective Film
Order each part separately is available
GP-4603T PFXGP4603TAD Protective Film HMI Panel Glass machine Features
• 65k Color, Clear, Bright, High-Resolution TFT Display
• Energy Efficient LED Display
• No Grid Analog Touch Panel for Improved Visibility and Precise Part Placement
• Supports different types of Protocol Drivers (communicates to two selected drivers)
• Separate front & rear module for quick installation in 22mm hole
• 10/100 Base-T Ethernet, and USB
This dedicated operator interface GP-4603T PFXGP4603TAD touch screen is ideal for OEMs and high graphical detail applications. It is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear QVGA display of this GP-4603T PFXGP4603TAD Touch Digitizer Glass Protective Film model is complemented with a large viewing area, and no grid analog for improved visibility and precise part placement.
A host of GP-4603T PFXGP4603TAD Front Overlay Touch Panel Terminal features include Ethernet, USB, and RS232, 422, 485 serial ports. The extensive network connectivity allows support of up to two simultaneous protocols making this a highly versatile operator interface.
Specifications:
The table below describes the parameters of the Proface GP4000 GP-4603T PFXGP4603TAD Protective Film Touch Digitizer HMI Parts.
| Ambient Humidity: | 10 to 90 % RH |
| Backlight: | White LED |
| Brand: | Proface |
| Product Line: | Proface GP4000 |
| Touch Size: | 12.1" |
| Display Colors: | 65,536 Colors |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Resolution: | 800 x 640 pixels |
| Warranty: | 12-Month Warranty |
Related Proface GP4000 Series Part No. :
| Proface GP4000 | Description | Inventory status |
| GP-4601T PFXGP4601TAA | Proface GP4000 GP-4601T Touch Screen Monitor Front Overlay | In Stock |
| GP-4601T PFXGP4601TAAC | Proface GP4000 GP-4601T Protective Film Touch Screen Replacement | In Stock |
| GP-4601T PFXGP4601TAD | Proface GP4000 GP-4601T Touch Panel Protective Film Repair | Available Now |
| GP-4601T PFXGP4601TADC | Proface GP4000 GP-4601T Touchscreen Protective Film Repair | In Stock |
| GP-4601T PFXGP4601TADR | Proface GP4000 GP-4601T HMI Touch Screen Glass Protective Film | Available Now |
| GP-4601T PFXGP4601TMA | Proface GP4000 GP-4601T Touch Screen Panel Front Overlay Repair | In Stock |
| GP-4601T PFXGP4601TMD | Proface GP4000 GP-4601T Front Overlay Touch Membrane | In Stock |
| GP-4603T PFXGP4603TAD | Proface GP4000 GP-4603T Touch Glass Front Overlay Repair | In Stock |
| GC-4401W PFXGE4401WAD | Proface GP4000 GC-4401W Touch Digitizer Glass Overlay Repair | Available Now |
| GC-4408W PFXGE4408WAD | Proface GP4000 GC-4408W HMI Panel Glass Protective Film | Available Now |
| Proface GP4000 | Description | Inventory status |
Proface GP4000 Series HMI Manuals PDF Download:
FAQ:
Question: How to install the GP-4603T PFXGP4603TAD Touch Screen Monitor Front Overlay Terminal Installation Gasket
Cause:
1. Place the GP GP-4603T PFXGP4603TAD Protective Film Touch Digitizer Glass unit on a flat, level surface, with the display face pointing down.
2. Remove the gasket from the GP GP-4603T PFXGP4603TAD Front Overlay Touch Panel unit.
3. Attach the new gasket to the GP GP-4603T PFXGP4603TAD Touchscreen Panel Protective Film unit. Position the GP-4603T PFXGP4603TAD gasket in the installation groove so that the GP-4603T PFXGP4603TAD gasket seam is at the bottom of the GP GP-4603T PFXGP4603TAD Touch Screen Front Overlay unit. First, insert the gasket into the 4 corners, in the order shown in the image below. Then, insert the rest of the gasket into the installation groove.
NOTE:
The center of the GP GP-4603T PFXGP4603TAD Front Overlay HMI Panel Glass unit bezel's installation groove is ribbed. Make sure you insert the GP-4603T PFXGP4603TAD gasket all the way in without catching the ribbed sections.
When using a tool to insert the GP-4603T PFXGP4603TAD gasket, make sure the tool does not catch the rubber gasket and cause a tear.
4. The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP GP-4603T PFXGP4603TAD Touch Screen Panel Glass Protectuve Film unit into a panel.
The GP-4603T PFXGP4603TAD gasket must be inserted correctly into the groove for IP65F moisture resistance for the GP unit.
