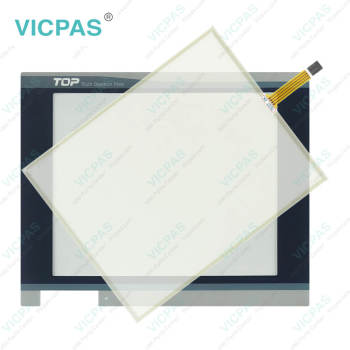

M2I X TOP Series XTOP12TS-SD-EX Overlay Glass Panel
- group name
- M2I
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- M2I XTOP12TS-SD-EX
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 29 Nov 2024 06:32:42 GMT
Paramtents
Brand M2I
Size 12.1 inch
Warranty 365 Days
Product Line M2I X TOP Series
Supply XTOP12TS-SD-EX Protective Film HMI Panel Glass
Shipping 2-4 workdays
Part Number M2I X TOP Series XTOP12TS-SD-EX
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
M2I X TOP Series XTOP12TS-SD-EX Protective Film Touch Screen Display Replacement
Order each part separately is available
Fixing
Install clamps with M2I XTOP12TS-SD-EX Touch Screen Monitor Front Overlay product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the XTOP12TS-SD-EX Front Overlay Touch Membrane panel cut with a screwdriver. If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor Can't work properly Tighten the screws to a torque of 0.2 N.m.
Setting System Recovery Mode of XTOP12TS-SD-EX Protective Film Touch Digitizer Glass
a.If the system fails to boot normally due to a problem during operation, the built-in recovery function can be used to maintain the factory default state. Please note that the built-in project will be deleted when using the recovery mode.
b.After opening the XTOP12TS-SD-EX Protective Film Touch Screen Monitor rear cover, you can adjust the setting switch. Keep the "BOOT UP"state when booting normally. If the system is recovering, turn off the power and set it to "RECOVERY".
c.When the recovery of M2I XTOP12TS-SD-EX HMI Panel Glass Front Overlay is completed, the buzzer sounds, then turn off the power and reset to "BOOT UP" state.
Specifications:
The table below describes the parameters of the M2I XTOP12TS-SD-EX Protective Film Touch Panel HMI Parts.
| Warranty: | 365 Days |
| Brand: | M2I |
| Display Type: | TFT Color |
| Display Resolution: | 1024 x 768 Pixels |
| Operation Temperature: | 0°C ~ +50°C |
| Storage Temperature: | -10°C ~ +60°C |
| Product Line: | M2I X TOP |
| Panel Cut: | 355 x 286 |
| Part Number: | XTOP12TS-SD-EX |
| Ambient Humidity: | 85% RH or less |
Related M2I X TOP Series HMI Part No. :
| M2I X TOP Series | Description | Inventory status |
| XTOP05MQ-SD | M2I X Top Series Touch Screen Panel Front Overlay Replacement | In Stock |
| XTOP05TQ-FD | M2I X Top Series Protective Film Touch Digitizer Glass Repair | Available Now |
| XTOP05TQ-SD | M2I X Top Series Front Overlay Touch Membrane Replacement | In Stock |
| XTOP08TS-SD | M2I X Top Series HMI Touch Screen Protective Film Repair | Available Now |
| XTOP08TV-SD | M2I X Top Series Touch Screen Display Front Overlay Replacement | In Stock |
| XTOP10TS-SA | M2I X Top Series Protective Film HMI Panel Screen Repair | Available Now |
| XTOP10TS-SD | M2I X Top Series Touchscreen Monitor Front Overlay Replacement | In Stock |
| XTOP10TV-SA | M2I X Top Series Touch Screen Film Protective Film Repair | Available Now |
| XTOP10TV-SD | M2I X Top Series Front Overlay Touch Digitizer Glass Replacement | In Stock |
| XTOP12TS-LA | M2I X Top Series Protective Film Touch Membrane Repair | Available Now |
| XTOP12TS-SA | M2I X Top Series Touch Screen Tablet Front Overlay Replacement | In Stock |
| XTOP12TS-SD | M2I X Top Series Front Overlay Touch Screen Panel Repair | Available Now |
| XTOP15TX-SA | M2I X Top Series HMI Touch Glass Front Overlay Repair | In Stock |
| XTOP15TX-SD | M2I X Top Series Protective Film Touch Screen Tablet Replacement | In Stock |
| M2I X TOP Series | Description | Inventory status |
M2I X TOP Series HMI Manuals PDF Download:
FAQ:
Question: What is the case material of M2I XTOP12TS-SD-EX Front Overlay Touch Panel Terminal?
Answer: The case material is PC(Flameless).
Question: What is the cooling system of X TOP Series XTOP12TS-SD-EX Touch Membrane Protective Film Machine?
Answer: The cooling system of XTOP12TS-SD-EX is natural air circulation.
Question: What is M2I X TOP Series XTOP12TS-SD-EX Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
TOP12TS-SD-EXXTOP2TS-SD-EX
XTOP12TS-SDEX
XTOPP12TS-SD-EX
XTOP12TS-SDE-X
