77158-008-52 Mounting Clips for Allen-Bradley Replacement

77158-008-52 Mounting Clips for Allen-Bradley Replacement
77158-008-52 Mounting Clips for Allen-Bradley Replacement77158-008-52 Mounting Clips for Allen-Bradley Replacement77158-008-52 Mounting Clips for Allen-Bradley Replacement77158-008-52 Mounting Clips for Allen-Bradley Replacement77158-008-52 Mounting Clips for Allen-Bradley Replacement
group name
Allen Bradley touch screen repair
Min Order
1 piece
brand name
VICPAS
model
77158-008-52
Nearest port for product export
Guangzhou, Hongknog, Shenzhen, Taiwan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Sun, 24 Nov 2024 08:12:49 GMT

Paramtents

  • Brand Allen Bradley

  • Warranty 365 Days

  • Product Line mounting clips

  • Supply 77158-008-52 mounting clips

  • Parts 77158-008-52

Packging & Delivery

  • Min Order1 piece

Briefing

77158-008-52 mounting clips for 700 to 1500 terminals. Brand New-365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

77158-008-52 Replacement Mounting Clips for PanelView Plus 700 to 1500 Terminals Repair


77158-008-52 Mounting Clips Repair Replacement

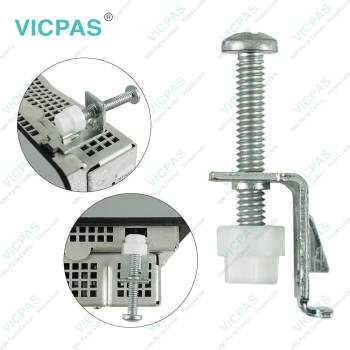

The Allen Bradley 77158-008-52 Mounting Clip is a high-performance product designed specifically for industrial automation equipment. Made from high-strength metal materials, this mounting clip offers exceptional durability and stability, capable of enduring harsh industrial environments. Its robust structure ensures secure installation of equipment, helping to prevent displacement or damage due to vibration or impact.


The 77158-008-52 Metal Mounting Clip is particularly suited for securing and installing the 2711P series panel displays. Its precise design allows for firm fixation of the display, ensuring safety and stability during operation. This mounting clip can adapt to various complex installation conditions and boasts excellent corrosion resistance, making it suitable for use in high humidity, high temperature, and other adverse environments.


In addition to its outstanding physical properties, the Allen Bradley 77158-008-52 Mounting Clip is also very easy to install. Users can effortlessly complete the installation and setup by following the provided instructions. Whether for assembling new equipment or maintaining and upgrading existing systems, this metal mounting clip is an ideal choice, significantly enhancing the operational efficiency and overall stability of the equipment.






Related Mounting Levers Mounting Clips Series Part No. :

Mounting Levers Description Inventory status
2711-NP2 Mounting Clips for Allen-Bradley PanelView Plus 700 to 1500 Terminal Available Now
2711P-RMCP Mounting levers for PanelView 5310, 5500, 5510, and PanelView Plus 7 Performance In Stock
2711P-RMCS Allen Bradley PanelView Plus 7 Standard Terminals Mounting Levers In Stock
2711P-RTFC Replacement Mounting Levers for PanelView Plus 400 and 600 Terminals In Stock
2711P-RTMC Replacement Mounting Clips for PanelView Plus 700 to 1500 Terminals Available Now
77158-008-51 Mounting Clips for PanelView Plus 700 to 1500 Terminals Replacement In Stock
77158-008-52 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals Available Now
77158-008-53 Allen-Bradley PanelView Plus 700, 1000, 1250, 1500 Mounting Clips In Stock
77162-009-51 Mounting Levers for PanelView Plus 400 and 600 Terminals Replacement In Stock
Mounting Clips Description Inventory status

Allen Bradley Mounting Clips Mounting Levers Manuals PDF Download:

  • PanelView Mounting Levers Installation Instructions
  • PanelView Plus 7 Performance Terminals Technical Data
  • PanelView Plus 7 Standard Terminals Mounting Levers
  • PanelView Plus Terminals User Manual

  • FAQ:

    Question: Mount the 700 to 1500 Terminal in a Panel

    Solution: Mounting clips secure the terminal to the panel. The number of clips you use (4, 6, or 8) varies by terminal type.
    Mount the 400 or 600 Terminal in a Panel
    Follow these steps to mount a 700 to 1500 terminal in a panel.
    1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
    2. Make sure the terminal sealing gasket is properly positioned on the terminal.
    This gasket forms a compression-type seal. Do not use sealing compounds.
    Mount the 400 or 600 Terminal in a Panel
    3. Install the legend strips before installing the terminal if you are using keypad legend strips on keypad terminals.
    Be careful not to pinch the legend strip during installation.
    4. Place the terminal in the panel cutout.
    5. Slide the ends of the mounting clips into the slots on the terminal.
    Mount the 400 or 600 Terminal in a Panel
    6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting surface uniformly.
    Mount the 400 or 600 Terminal in a Panel
    7. Tighten the mounting clips screws to a torque of 0.90…1.1 Nm (8…10 lb•in) by using the specified sequence, making sure not to overtighten.
    Mount the 400 or 600 Terminal in a Panel


    Question: What is the 77158-008-52 Mounting Clips price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
