77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals

77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals
77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals
group name
Allen Bradley touch screen repair
Min Order
1 piece
brand name
VICPAS
model
77158-008-53
Nearest port for product export
Guangzhou, Hongknog, Shenzhen, Taiwan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Fri, 01 Nov 2024 09:26:56 GMT

Paramtents

  • Brand Allen Bradley

  • Warranty 365 Days

  • Product Line Mounting Clips

  • Supply 77158-008-53 Mounting Clips Repair

  • Parts 77158-008-53 Mounting Clips

Packging & Delivery

  • Min Order1 piece

Briefing

Allen Bradley 77158-008-53 Mounting Clips for 700 to 1500 terminals. Brand New-365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

77158-008-53 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals Repair


77158-008-53 Mounting Clips for PanelView Plus 700 to 1500 Terminals Repair Replacement

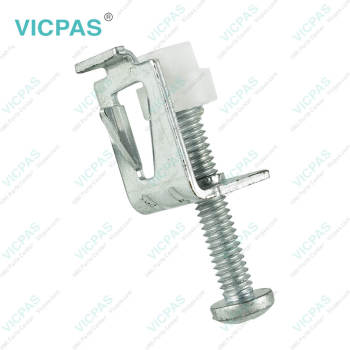

The Allen Bradley 77158-008-53 Mounting Clip is a high-quality product designed for industrial automation equipment. This mounting clip is made from high-strength metal materials, offering exceptional durability and stability for use in various harsh industrial environments. Its robust structural design ensures the stability of equipment under vibration and impact, preventing displacement or damage.


The 77158-008-53 Metal Mounting Clip is specifically designed for the installation of 2711P series panel displays. Its precise dimensions and premium materials enable secure fixation of the display, ensuring safety and stability during operation. This mounting clip is suitable for a wide range of complex installation conditions and features excellent corrosion resistance, making it ideal for use in high humidity and high-temperature environments.


In addition to its outstanding physical properties, the Allen Bradley 77158-008-53 Mounting Clip is also very easy to install. Users can effortlessly complete the installation and setup by following the provided installation guide. Whether for assembling new equipment or maintaining and upgrading existing systems, this metal mounting clip is an ideal choice, significantly enhancing the operational efficiency and overall reliability of the equipment.


VICPAS supply 77158-008-53 Mounting Clips for PanelView Plus 700 to 1500 Terminals repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.






Related Mounting Levers Mounting Clips Series Part No. :

Mounting Levers Description Inventory status
2711-NP2 Mounting Clips for Allen-Bradley PanelView Plus 700 to 1500 Terminal Available Now
2711P-RMCP Mounting levers for PanelView 5310, 5500, 5510, and PanelView Plus 7 Performance In Stock
2711P-RMCS Allen Bradley PanelView Plus 7 Standard Terminals Mounting Levers In Stock
2711P-RTFC Replacement Mounting Levers for PanelView Plus 400 and 600 Terminals In Stock
2711P-RTMC Replacement Mounting Clips for PanelView Plus 700 to 1500 Terminals Available Now
77158-008-51 Mounting Clips for PanelView Plus 700 to 1500 Terminals Replacement In Stock
77158-008-52 Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals Available Now
77158-008-53 Allen-Bradley PanelView Plus 700, 1000, 1250, 1500 Mounting Clips In Stock
77162-009-51 Mounting Levers for PanelView Plus 400 and 600 Terminals Replacement In Stock
Mounting Clips Description Inventory status

Allen Bradley Mounting Clips Mounting Levers Manuals PDF Download:

  • PanelView Mounting Levers Installation Instructions
  • PanelView Plus 7 Performance Terminals Technical Data
  • PanelView Plus 7 Standard Terminals Mounting Levers
  • PanelView Plus Terminals User Manual

  • FAQ:

    Question: Mount the 700 to 1500 Terminal in a Panel

    Solution: Mounting clips secure the terminal to the panel. The number of clips you use (4, 6, or 8) varies by terminal type.
    Mount the 400 or 600 Terminal in a Panel
    Follow these steps to mount a 700 to 1500 terminal in a panel.
    1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
    2. Make sure the terminal sealing gasket is properly positioned on the terminal.
    This gasket forms a compression-type seal. Do not use sealing compounds.
    Mount the 400 or 600 Terminal in a Panel
    3. Install the legend strips before installing the terminal if you are using keypad legend strips on keypad terminals.
    Be careful not to pinch the legend strip during installation.
    4. Place the terminal in the panel cutout.
    5. Slide the ends of the mounting clips into the slots on the terminal.
    Mount the 400 or 600 Terminal in a Panel
    6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting surface uniformly.
    Mount the 400 or 600 Terminal in a Panel
    7. Tighten the mounting clips screws to a torque of 0.90…1.1 Nm (8…10 lb•in) by using the specified sequence, making sure not to overtighten.
    Mount the 400 or 600 Terminal in a Panel


    Question: What is the 77158-008-53 Mounting Clips price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
