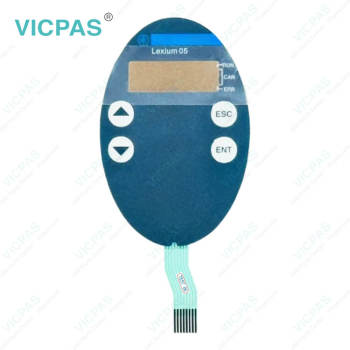

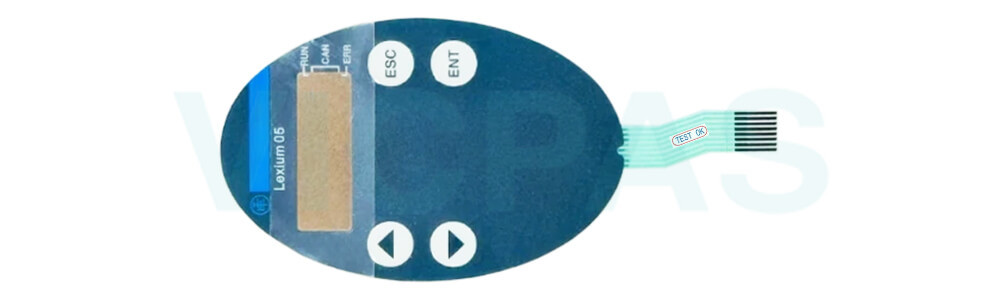

LXM05AD10M2 Motion Servo Drive Membrane Keyboard Keypad

group name: For Schneider Membrane Keyboard Repair

Min Order: 1 piece

brand name: VICPAS

model: LXM05AD10M2

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Tue, 13 May 2025 03:22:32 GMT

contact supplier

Paramtents

Brand Schneider
Warranty 365 Days
Supply LXM05AD10M2 Membrane keypad keyboard
Supply Schneider LXM05AD10M2 Terminal Keypad Replacement
Product Line Schneider Lexium 05 Series

Packging & Delivery

Min Order1 piece

Briefing

Schneider Lexium 05 LXM05AD10M2 Keyboard Membrane Replacement. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Schneider Lexium 05 LXM05AD10M2 Keypad Membrane Repair Part

Schneider LXM05AD10M2 Motion Servo Drive Membrane Keypad Switch Repair Kit

Schneider LXM05AD10M2 Operator Panel Keypad – Membrane Keyboard
VICPAS supplies high-quality membrane keypads for Schneider LXM05AD10M2 servo drives. This keypad is compatible with the Lexium 05 series and ensures accurate control and reliable operation.

Schneider LXM05AD10M2 drives feature high-performance motion control with integrated safety functions, designed for demanding servo applications. These drives include EMC-compliant design features to meet industrial noise and safety standards. In certain installations, attention should be given to leakage current when selecting protective devices such as residual current devices (RCDs).

VICPAS supplies LXM05AD10M2 Schneider Terminal Operator Keyboard with 365 Days warranty and support Urgent Worldwide Shipping. The LXM05AD10M2 Membrane Keypad Keyboard is specially developed for use with Lexium 05 servo drives, ensuring precise operation and reliable user interface performance. This drive is ideal for packaging, material handling, and other motion-intensive machinery, offering easy integration and enhanced control accuracy within a multi-axis system architecture.

Contact Best Price

Specifications:

The table below describes the parameters of the LXM05AD10M2 Schneider Membrane Keypad Switch.

Part Number:	LXM05AD10M2
Analogue Inputs:	2
Nominal Power:	0.75 kW at 4 kHz
Warranty:	365 Days Warranty
Supply Frequency:	50/60 Hz - 5...5 %

Range of Product:	Lexium 05
Operating Temp.:	0° to +50° C
Storage Temp.:	-25...70 °C
Overvoltage Category:	III
Response Time:	<= 10 ms

Related Schneider Lexium 05 Series Part No. :

Schneider LXM05	Description	Inventory status
Schneider Servo Drive	Description	Inventory status

Schneider LXM05 HMI Manuals PDF Download:

LXM05 Modbus USA Technical Documentation (PDF)

LXM05A AC servo drive Product Manual (PDF)

FAQ:

Question: What are the general conditions for use of residual current devices?

Answer: Where the installation regulations require upstream protection by means of a residual current device (residual current device, RCD), a residual current device of "Type A" can be used on a single-phase drive with connection between N and L. In all other cases, "Type B" must be used.
The following characteristics must be taken into consideration here:
• Filtering of high-frequency currents.
• Delay which can prevent triggering as a result of interference capacities which may be loaded when switching on. This delay is not possible with 30-mA protective switches. In this case, use protective switches which are not sensitive to unintentional triggering, for example a series s.i (super-immunised) residual current device with increased noise immunity (manufactured by Merlin Gerin).
If the system consists of several drives, it is necessary to use a residual current device for each drive.

Question: Is the keyboard of the LXM05AD10M2 unit replaceable?

Answer: Yes, the membrane keypad of LXM05AD10M2 can be replaceable.
