LXM05AD34N4 Operator Panel Keypad HMI Repair
- group name
- For Schneider Membrane Keyboard Repair
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- LXM05AD34N4
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 21 May 2025 12:19:17 GMT
Paramtents
Brand Schneider
Warranty 365 Days
Supply LXM05AD34N4 Keypad Membrane
Model LXM05AD34N4
Range of product Lexium 05
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

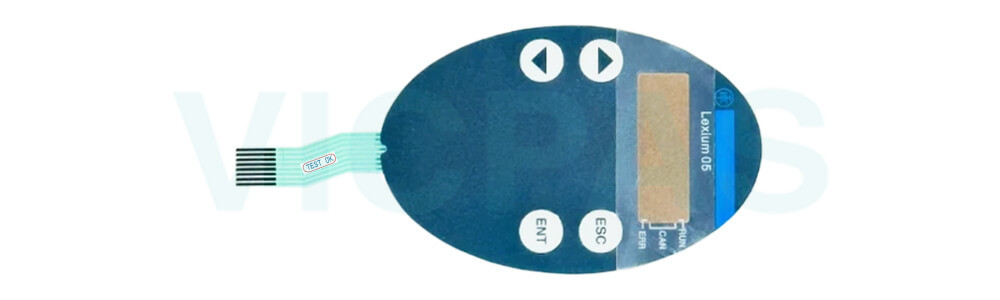

Schneider LXM05AD34N4 Motion Servo Drive Keypad Membrane Switch Repair Kit
Schneider LXM05AD34N4 Keyboard Membrane – Product Overview
The Schneider Lexium 05 motion servo drives LXM05AD34N4 Membrane Keypad, available through VICPAS, is a dedicated interface tool designed to control Lexium 05 series servo drives efficiently. This keypad enables users to configure parameters, monitor real-time operations, and troubleshoot system errors directly on the drive.
Features
User Interface: Equipped with a clear display panel and multi-functional navigation keys for intuitive operation (exact screen specifications may vary by model; refer to official Schneider documentation).
Robust Design: Built to withstand industrial environments with a compact housing and reliable connectivity.
Compatibility: Seamlessly integrates with Lexium 05 drives using standard industrial communication protocols (e.g., CANopen).
Certifications: Complies with Schneider’s quality and safety standards for industrial components.
VICPAS supplies Schneider Motion Servo Drive LXM05AD34N4 Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Schneider LXM05AD34N4 Switch Membrane.
| Part Number: | LXM05AD34N4 |
| Analogue Inputs: | 2 |
| Discrete Output Number: | 2 |
| Response Time: | <= 10 ms |
| Warranty: | 365 Days Warranty |
| Nominal Power: | 3 kW at 4 kHz |
| Operating Temp.: | 0 °C to 50 °C |
| Storage Temp.: | -25 °C to 70 °C |
| Overvoltage Category: | III |
| Supply Frequency: | 50/60 Hz - 5...5 % |
Related Schneider Motion Servo Drive Part No. :
| Schneider Lexium 05 | Description | Inventory status |
| LXM05AD10F1 | Schneider LXM05 Operator Keyboard Replacement | In Stock |
| LXM05AD10M2 | Schneider Lexium 05 HMI Operator Panel Keypad | In Stock |
| LXM05AD10M3X | Motion Servo Drive Keyboard Membrane Repair | Available Now |
| LXM05AD14N4 | Schneider Motion Servo Drive Switch Membrane | In Stock |
| LXM05AD17F1 | Lexium 05 Schneider HMI Terminal Keypad Repair | Available Now |
| LXM05AD17M2 | Schneider Lexium 05 Keyboard Membrane Repair | In Stock |
| LXM05AD17M3X | Schneider Motion Servo Drive Keypad Replacement | In Stock |
| LXM05AD22N4 | Schneider LXM05 Membrane Keypad Overlay Repair | In Stock |
| LXM05AD28F1 | Motion Servo Drive Schneider HMI Keypad Membrane | Available Now |
| LXM05AD28M2 | Schneider Motion Servo Drive Operator Keyboard | Available Now |
| LXM05AD34N4 | Schneider LXM05 Keyboard Membrane Replacement | In Stock |
| LXM05AD42M3X | Lexium 05 Motion Servo Drive HMI Terminal Keypad | In Stock |
| LXM05AD57N4 | Schneider Lexium 05 Keypad Membrane Switch Repair | Available Now |
| Schneider LXM05A | Description | Inventory status |
Schneider LXM05A HMI Manuals PDF Download:
FAQ:
Question: What should I pay attention to when connecting the power amplifier power supply voltage?
Answer:
• Electric shock because of insufficient earthing.
This drive system has an increased leakage current > 3.5mA.
Use a protective conductor at least 10 mm² (AWG 6) or two protective conductors with the cross section of the conductor for the power supply of the power terminals. Observe the local regulations for earthing.
• Insufficient protection against overcurrents.
1. Use the external fuses specified in the "Technical Data" section.
2. Do not connect the product to a power supply in which the short-circuit capacity exceeds the maximum short-circuit current approved in "Technical Data".
• Destruction by incorrect mains voltage
The incorrect mains voltage may destroy the product.
Before switching on and configuring the product, make sure that the type is approved for the mains voltage.
Question: What are the common communication errors?
Answer: Communication errors include:
• character timeout (time exceeded during transmission of characters),
• parity errors,
• framing errors (error in data frame),
• overrun errors (overrun in receive register of the serial module).
If one of these errors arises, the unit no longer responses. The master generates a timeout error.
Common misspellings:
LXM0SAD34N4LMX05AD34N4
LXM05AAD34N4
LXM05AD3N4
LXM05AO34N4
