B&R 4MP281.0843-K04 Panel Glass Keypad Repair

group name: Mobile Panel

Min Order: 1 piece

brand name: VICPAS

model: 4MP281.0843-K04

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 24 Nov 2024 11:07:10 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Size 8.4 inch
Brand B&R
Model B&R Mobile Panel 200 4MP281.0843-K04
Warranty 1 Year VICPAS Warranty
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

B&R Mobile Panel 200 4MP281.0843-K04 Keyboard Membrane Touch Panel Glass. 365-day Warranty-Fully Tested-Worldwide Shipping

Detailed

B&R Mobile Panel 200 4MP281.0843-K04 Membrane Keypad Keyboard Touch Screen Glass Repair

Order each part separately is available

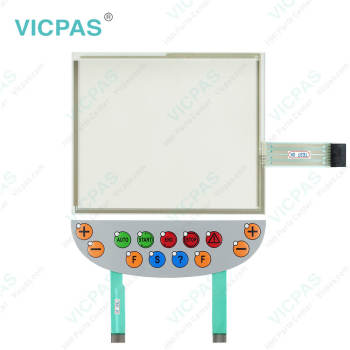

Mobile Panel 200 4MP281.0843-K04 Touch Screen Panel Keypad Membrane

Mobile Panel 200 4MP281.0843-K04 devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables

The Mobile Panel 200 4MP281.0843-K04 is equipped with two enable switches that are arranged on both sides of the device. It allows both left- and right-handed operation. Both enable switches are connected in parallel and have the exact safe effect on the shared safety circuits in the attachment cable. Only one enable switch must be enabled. The enable switch consists of a three-position control element and separate evaluation electronics. An important feature is the uniform dual-circuit design that spans everything from the control elements to the connection terminals. The evaluation circuits have been implemented using various technologies and switching circuitry. The electronic design of the switching contacts means that their service life remains independent of the load up to their rated values (resistive, inductive and capacitive).

Contact Best Price

Specifications:

The table below describes the parameters of the 4MP281.0843-K04 Mobile Panel 200 Touchscreen Panel Membrane Keypad Keyboard.

Part Number :	4MP281.0843-K04
Product Line:	Mobile Panel 200
Screen diagonal	8.4 in
Warranty:	365 Days Warranty
Input Power	24 VDC

Display Type:	TFT color
Mounting position:	Vertical
Input Type:	Keypad
Serial interface Type:	RS232
Storage	-20 to 70°C

Related B&R Series Part No. :

B&R Mobile Panel 200	Description	Inventory status
4MP251.0571-12	B&R Mobile Panel 200 Operator Keyboard Repair	In Stock
4MP251.0571-K02	Mobile Panel 200 Keyboard Membrane Replacement	Available Now
4MP281.0571-12	B&R Mobile Panel 200 Touch Screen Panel Switch Membrane Repair	In Stock
4MP281.0571-K01	B and R Mobile Panel 200 Touch Digitizer Replacement	Available Now
4MP281.0843-13	Mobile Panel 200 HMI Touch Screen Organizer Switch Membrane	Available Now
4MP281.0843-K03	Mobile Panel 200 Touch Panel Keyboard Membrane Repair	In Stock
4MP281.0843-K04	B&R Mobile Panel 200 Touch Screen Membrane Keypad Keyboard	In Stock
B and R MP200	Description	Inventory status

B&R Mobile Panel 200 Manuals PDF Download:

B&R Mobile Panel 100/200 User's Manual

FAQ:

Question:How to creating a B&R Mobile Panel 200 DOS boot diskette in 4MP281.0843-K04 Windows XP?

Answer:
• Place an empty 1.44 MB HD diskette in the disk drive.
• Open Windows Explorer.
• Right-click on the 3?" floppy icon and select "Format...".
How to creating a B&R Mobile Panel 200 DOS boot diskette in 4MP281.0843-K04 Windows XP?
• Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".

After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders.
How to creating a B&R Mobile Panel 200 DOS boot diskette in 4MP281.0843-K04 Windows XP?

Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.

Question:How can the Mobile Panel 200 4MP281.0843-K04 service life of backlights be extended?

Answer:
• Set the display brightness to the lowest value comfortable for the eyes.
• Use dark images.
• Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
