4MP281.0843-K03 B&R Touch Screen Terminal Keypad
- group name
- Mobile Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 4MP281.0843-K03
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 11:00:28 GMT
Paramtents
Brand B&R
Size 6.5 inch
Warranty 1 Year VICPAS Warranty
Model B&R Mobile Panel 200 4MP281.0843-K03
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

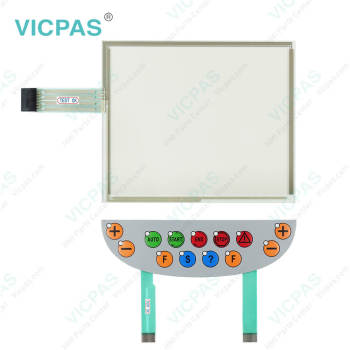

B&R Mobile Panel 200 4MP281.0843-K03 Membrane Keypad Touch Screen Glass Replacement
Order each part separately is available
The Mobile Panel 200 is equipped with two enable switches that are arranged on both sides of the device. It allows both left- and right-handed operation. Both enable switches are connected in parallel and have the exact safe effect on the shared safety circuits in the attachment cable. Only one enable switch must be enabled. The enable switch consists of a three-position control element and separate evaluation electronics. An important feature is the uniform dual-circuit design that spans everything from the control elements to the connection terminals. The evaluation circuits have been implemented using various technologies and switching circuitry. The electronic design of the switching contacts means that their service life remains independent of the load up to their rated values (resistive, inductive and capacitive).
Depending on the design, Mobile Panel devices come with the operating system Automation Runtime (AR) or with BIOS. The AR devices are programmed uniformly into the entire B&R automation system using B&R Automation Studio (Visual Components).
Specifications:
The table below describes the parameters of the 4MP281.0843-K03 Mobile Panel 200 Touchscreen Panel Keypad Membrane.
| Part Number : | 4MP281.0843-K03 |
| Product Line: | Mobile Panel 200 |
| Screen diagonal | 8.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage | -20 to 60°C |
Related B&R Series Part No. :
| B&R Mobile Panel 200 | Description | Inventory status |
| 4MP251.0571-12 | B&R Mobile Panel 200 Operator Keyboard Repair | In Stock |
| 4MP251.0571-K02 | Mobile Panel 200 Keyboard Membrane Replacement | Available Now |
| 4MP281.0571-12 | B&R Mobile Panel 200 Touch Screen Panel Switch Membrane Repair | In Stock |
| 4MP281.0571-K01 | B and R Mobile Panel 200 Touch Digitizer Replacement | Available Now |
| 4MP281.0843-13 | Mobile Panel 200 HMI Touch Screen Organizer Switch Membrane | Available Now |
| 4MP281.0843-K03 | Mobile Panel 200 Touch Panel Keyboard Membrane Repair | In Stock |
| 4MP281.0843-K04 | B&R Mobile Panel 200 Touch Screen Membrane Keypad Keyboard | In Stock |
| B and R MP200 | Description | Inventory status |
B&R Mobile Panel 200 Manuals PDF Download:
FAQ:
Question:How to upgrade B&R Mobile Panel 200 4MP281.0843-K03 MTCX Firmware (MTCX FPGA, MTCX PX32)?
Answer: A current MTCX Firmware (MTCX FPGA and MTCX PX32) upgrade can be downloaded directly from the service portal on the B&R homepage (..........com).
To carry out a firmware upgrade, the following steps should be taken:
• Create bootable media.
• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
• Connect the bootable media to the Power Panel and reboot the device.
• A boot menu with the following options is displayed after booting:
Concerning item 1:
The MTCX Firmware FPGA and PX32 is automatically updated (default after 5 sec).
Concerning item 2:
Returns to the shell (MS-DOS).
• Select the desired action.
• Remove the bootable media and reboot the device (only after a successful update!).
Question:How can Mobile Panel 200 4MP281.0843-K03 B&R image persistence be reduced?
Answer:
• Switch continuously between static and dynamic images.
• Prevent excessive differences in brightness between foreground and background elements.
• Use colors with similar brightness.
• Use complementary colors for subsequent images.
• Use screensavers.
Common misspellings:
4M281.0843-K03
4MP28.0843-K03
4MP281.o843-K03
4MP281.0834-K03
