2715-T10CA-B PanelView 5500 Film Display Touch Reapir

group name: PanelView 5500

Min Order: 1 piece

brand name: VICPAS

model: 2715-T10CA-B

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 20:44:10 GMT

contact supplier

Paramtents

Product Line Allen-Bradley PanelView 5500
Warranty 365 Days
Shipping 2-3 workdays
Keyword Touchscreen, Front Overlay, LCD Display Screen
Size 10.4 inches
FPC 10 wires

Packging & Delivery

Min Order1 piece

Briefing

2715-T10CA-B PanelView 5500 Touch Digitizer Film Display Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

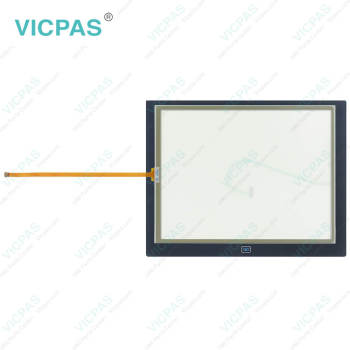

Allen-Bradley PanelView 5500 HMI 2715-T10CA-B Resistive Touch Panel Protective Film Repair

Order each part separately is available

Allen-Bradley PanelView 5500 HMI 2715-T10CA-B Touch Screen Protective Film Repair

The PanelView 5500 HMI 2715-T10CA-B Resistive Touch Screen Protective Film and LCD Display terminal includes these features and capabilities:

• Tightly integrated control and design environment allows information to be shared between the PanelView 5500 HMI 2715-T10CA-B Touch Panel Glass Protective Film and LCD Display terminal and the Logix platforms.

• The Studio 5000® environment provides one point of access for both View Designer and Logix Designer applications.

• Connection to one ControlLogix 5570 or CompactLogix L1, L2, or L3 controller with revision 27 firmware or later.

• Supports a maximum of 50 user-defined screens (the screens will increase in future firmware).

• Supports a maximum of 500 Logix-based alarms (the alarms will increase in future firmware).

• Ethernet communication supporting Device Level Ring (DLR), linear, or star network topologies.

• High-speed human machine interface (HMI) button control and easily configured navigation menu.

VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T10CA-B Resistive Touch Screen Front Overlay and LCD Display Panel with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 2715-T10CA-B PanelView 5500 Parts.

Part Number:	2715-T10CA-B
Operating Temperature:	0°C - 55°C
Storage Temperature:	- 25°C - 70°C
Relative Humidity:	5…95% without condensation
Display Type:	Color TFT LCD

View Area(W x H):	211 x 158 mm
Display Resolution:	800 x 600 SVGA, 4:3
Color Depth:	18-bit color graphics
Status Indicators:	STS (green), ERR (red)
Brightness:	300 cd/m2 (Nits)

Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500	Description	Inventory status
2715-B10CA	2715-B10CA PanelView 5500 Keyboard Touch Display Repair	In Stock
2715-B10CA-B	2715-B10CA-B Keyboard Touch LCD Display Replacement	Available Now
2715-B10CD	PanelView 5500 2715-B10CD Touch Keypad Display Repair	In Stock
2715-B10CD-B	2715-B10CD-B Display Keyboard Glass Repair Replacement	Available Now
2715-T10CA	PanelView 5500 2715-T10CA Panel Glass Protective Film	In Stock
2715-T10CA-B	2715-T10CA-B PanelView 5500 Film Display Touch Reapir	In Stock
2715-T10CD	2715-T10CD PanelView 5500 Overlay Panel Glass Repair	In Stock
2715-T10CD-B	PanelView 5500 2715-T10CD-B Front Overlay Touch Repair	Available Now
2715-T12WA	2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film	Available Now
2715-T12WA-B	PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit	In Stock
2715-T12WD	PanelView 5500 2715-T12WD Touch Overlay Display Repair	In Stock
2715-T12WD-B	2715-T12WD-B PanelView 5500 Panel Glass Overlay Display	In Stock
PanelView 5500 HMI	Description	Inventory status

PanelView 5500 HMI Manuals PDF Download:

Allen-Bradley PanelView 5500 Terminals User Manual

PanelView 5500 Specifications Technical Data

Allen-Bradley PanelView Standard Terminal Specifications

FAQ:

Question: How to replace the battery?

Answer:

1. Disconnect power from the PanelView 5500 HMI 2715-T10CA-B Protective Film Touch Digitizer Monitor LCD Screen Display terminal.

2. Loosen the screws that secure the logic module to the back of the display.

Allen-Bradley PanelView 5500 HMI 2715-T10CA-B LCD Display Front Overlay Touchscreen Replacement

3. Carefully lift the logic module away from the display module and turn over to expose the circuit board.

4. Locate the coin-cell battery on the circuit board.

Allen-Bradley PanelView 5500 HMI 2715-T10CA-B LCD Display Protective Film Touchscreen Replacement

5. Remove the battery by lifting on the side of the battery.

6. Insert the new battery with the positive (+) polarity up.

7. Reattach the logic module by aligning the connector on the bottom of the logic module with the connector on the back of the display module.

8. Push down on the logic module and make sure that it is fully seated.

9. Tighten the screws to a torque of 0.68…0.90 N•m (6…8 lb•in).

Question: What is the size of the 2715-T10CA-B HMI Touch Digitizer Monitor Front Overlay and LCD Screen Display?

Answer: The 2715-T10CA-B Resistive Touch Screen Protective Film and LCD Screen are 10-inch.

Question: What is the 2715-T10CA-B Panelview 5500 HMI Touch Panel Protective Film and LCD Screen HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
