PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit

group name: PanelView 5500

Min Order: 1 piece

brand name: VICPAS

model: 2715-T12WA-B

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 21:36:07 GMT

contact supplier

Paramtents

Warranty 365 Days
Product Line PanelView 5500
Parts Touch Panel Glass, Front Overlay, LCD Display
Shipping 2-3 workdays
Size 12.1 inches
FPC 10 wires
Brand Allen-Bradley
Model 2715-T12WA-B

Packging & Delivery

Min Order1 piece

Briefing

2715-T12WA-B PanelView 5500 Touch Digitizer Front Film Display. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

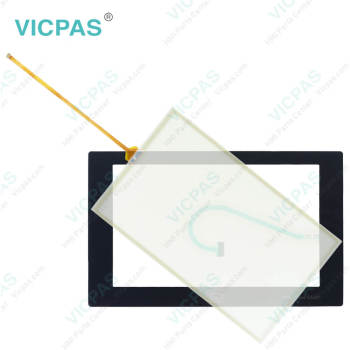

Allen-Bradley PanelView 5500 HMI 2715-T12WA-B Front Overlay HMI Touch Screen Replacement

Order each part separately is available

Allen-Bradley PanelView 5500 HMI 2715-T12WA-B Front Overlay HMI Touch Panel Replacement

The PanelView Standard 2715-T12WA-B Touch Screen Panel Glass Front Overlay LCD Display terminals feature pixel graphics capabilities and functionality in color, grayscale, and monochrome displays. These rugged electronic operator interface solutions are available in a variety of sizes and configurations to meet specific application requirements. All use common development software to simplify programming and improve operator productivity.

The PanelView 5500 HMI 2715-T12WA-B Touch Digitizer Glass Front Overlay LCD Display Panel terminal communicates with PLC and SLC controllers over EtherNet/IP, DeviceNet, ControlNet, DH-485, DH+, and remote I/O networks, or by using serial communication.

Other features supported by the PanelView Standard line include advanced alarm handling, screen security, analog gauges, ATA memory card, universal language support, and online printing for more intuitive operator control.

VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T12WA-B Resistive Touch Panel, Protective Film and LCD Display Panel with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 2715-T12WA-B PanelView 5500 Parts.

Part Number:	2715-T12WA-B
Display Size:	12.1 inches widescreen
Display Type:	Color TFT LCD
Display Resolution:	1280 x 800 WXGA, 16:10
Color Depth:	18-bit color graphics

Product Line:	PanelView 5500
Brightness:	300 cd/m2 (Nits)
Backlight:	LED, non-replaceable
USB Host Ports:	0.5A at 5V DC
Input Voltage:	100…240V AC

Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500	Description	Inventory status
2715-B10CA	2715-B10CA PanelView 5500 Keyboard Touch Display Repair	In Stock
2715-B10CA-B	2715-B10CA-B Keyboard Touch LCD Display Replacement	Available Now
2715-B10CD	PanelView 5500 2715-B10CD Touch Keypad Display Repair	In Stock
2715-B10CD-B	2715-B10CD-B Display Keyboard Glass Repair Replacement	Available Now
2715-T10CA	PanelView 5500 2715-T10CA Panel Glass Protective Film	In Stock
2715-T10CA-B	2715-T10CA-B PanelView 5500 Film Display Touch Reapir	In Stock
2715-T10CD	2715-T10CD PanelView 5500 Overlay Panel Glass Repair	In Stock
2715-T10CD-B	PanelView 5500 2715-T10CD-B Front Overlay Touch Repair	Available Now
2715-T12WA	2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film	Available Now
2715-T12WA-B	PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit	In Stock
2715-T12WD	PanelView 5500 2715-T12WD Touch Overlay Display Repair	In Stock
2715-T12WD-B	2715-T12WD-B PanelView 5500 Panel Glass Overlay Display	In Stock
PanelView 5500 HMI	Description	Inventory status

PanelView 5500 HMI Manuals PDF Download:

Allen-Bradley PanelView 5500 Terminals User Manual

Allen-Bradley PanelView Standard Terminal Specifications

PanelView 5500 Specifications Technical Data

FAQ:

Question: What is the size of the 2715-T12WA-B HMI Touch Digitizer Monitor Film and LCD Screen Display?

Answer: The 2715-T12WA-B HMI Touch Panel Protective Film and LCD Screen are 12-inch.

Question: What is the 2715-T12WA-B Panelview 5500 Resistive Touch Screen Front Overlay and LCD Screen HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.

Question: How to replace the battery?

Answer:

1. Disconnect power from the PanelView 5500 HMI 2715-T12WA-B Protective Film Touch Panel Glass LCD Screen Display terminal.

2. Loosen the screws that secure the logic module to the back of the display.

Allen-Bradley PanelView 5500 HMI 2715-T12WA-B LCD Display Protective Film Touchscreen Replacement

3. Carefully lift the logic module away from the display module and turn over to expose the circuit board.

4. Locate the coin-cell battery on the circuit board.

Allen-Bradley PanelView 5500 HMI 2715-T12WA-B Front Overlay Touch Screen Display Replacement

5. Remove the battery by lifting on the side of the battery.

6. Insert the new battery with the positive (+) polarity up.

7. Reattach the logic module by aligning the connector on the bottom of the logic module with the connector on the back of the display module.

8. Push down on the logic module and make sure that it is fully seated.

9. Tighten the screws to a torque of 0.68…0.90 N•m (6…8 lb•in).
