2715-B10CA-B Keyboard Touch LCD Display Replacement
- group name
- PanelView 5500
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 2715-B10CA-B
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:30:11 GMT
Paramtents
Name 2715-B10CA-B Touch Keyboard LCD Display Repair
Product Line Allen-Bradley PanelView 5500 Repair Kit
Size 10.4 inches
FPC 10 wires
Shipping 2-3 workdays
Warranty 365 Days
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

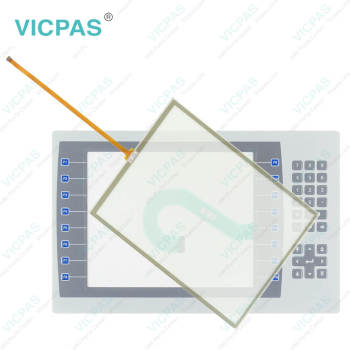

Allen-Bradley PanelView 5500 HMI 2715-B10CA-B Membrane Keyboard Touch Screen LCD Display Repair
Order each part separately is available
When using PanelView 5500 HMI 2715-B10CA-B Touch Keyboard Membrane LCD Display terminal outdoors, you must follow the recommendations outlined below to maximize the field life of the front bezel and display:
• Add UV protection and shielding (sun shade or sun visor)
• Manage terminal temperature
• Install a protective overlay
• Consider terminal orientation
• Select a proper enclosure
During runtime, the PanelView™ 5500 terminal runs HMI projects. A project is configured and downloaded to your 2715-B10CA-B Switch Membrane HMI Touch Panel LCD Screen Display terminal from the View Designer application. The project launches each time the terminal restarts. The 2715-B10CA-B Keypad Membrane Resistive Touch Screen LCD Display Panel terminal exchanges data values with the controller, animates the displayed data, and responds when you press keys or touch a screen or element on a screen. During runtime, you can perform these tasks:
• Navigate screens and their graphic elements
• View and manage alarms
• View and perform operations on a trend chart
• Display error information
• Configure terminal settings and view diagnostic information
VICPAS supply Allen Bradley PanelView 5500 HMI 2715-B10CA-B Resistive Touch Panel, Operator Keyboard and LCD Display with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 2715-B10CA-B PanelView 5500 Parts.
| Part Number: | 2715-B10CA-B |
| View Area(W x H): | 211 x 158 mm |
| Color Depth: | 18-bit color graphics |
| Status Indicators: | STS (green), ERR (red) |
| Brightness: | 300 cd/m2 (Nits) |
| Backlight: | LED, non-replaceable |
| USB Host Ports: | 0.5A at 5V DC |
| Display Type: | Color TFT LCD |
| Warranty: | 365 Days |
| Display Resolution: | 800 x 600 SVGA, 4:3 |
Related Allen Bradley PanelView 5500 Terminals Part No. :
| PanelView 5500 | Description | Inventory status |
| 2715-B10CA | 2715-B10CA PanelView 5500 Keyboard Touch Display Repair | In Stock |
| 2715-B10CA-B | 2715-B10CA-B Keyboard Touch LCD Display Replacement | Available Now |
| 2715-B10CD | PanelView 5500 2715-B10CD Touch Keypad Display Repair | In Stock |
| 2715-B10CD-B | 2715-B10CD-B Display Keyboard Glass Repair Replacement | Available Now |
| 2715-T10CA | PanelView 5500 2715-T10CA Panel Glass Protective Film | In Stock |
| 2715-T10CA-B | 2715-T10CA-B PanelView 5500 Film Display Touch Reapir | In Stock |
| 2715-T10CD | 2715-T10CD PanelView 5500 Overlay Panel Glass Repair | In Stock |
| 2715-T10CD-B | PanelView 5500 2715-T10CD-B Front Overlay Touch Repair | Available Now |
| 2715-T12WA | 2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film | Available Now |
| 2715-T12WA-B | PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit | In Stock |
| 2715-T12WD | PanelView 5500 2715-T12WD Touch Overlay Display Repair | In Stock |
| 2715-T12WD-B | 2715-T12WD-B PanelView 5500 Panel Glass Overlay Display | In Stock |
| PanelView 5500 HMI | Description | Inventory status |
PanelView 5500 HMI Manuals PDF Download:
FAQ:
Question: How to connect the PanelView 5500 HMI 2715-B10CA-B Membrane Keypad Switch Touch Digitizer Monitor LCD Display operator terminal to an AC power source?
Answer:
1. Verify that the wiring is not connected to a power source.
2. Strip 7 mm (0.28 in.) of insulation from the ends of the wire.
3. Secure the AC power wires to the marked terminals (L1 and L2N) on the terminal block.
4. Secure the protective earth ground wire to the marked terminal on the terminal block. The protective earth terminal must be connected to a low-impedance earth ground.
5. Apply power to the 2715-B10CA-B Keyboard Membrane Touch Screen Glass LCD Screen Display operator terminal.
Question: What is the size of the 2715-B10CA-B HMI Touch Panel Glass, Keypad Membrane and LCD Screen Display?
Answer: The 2715-B10CA-B Touch Digitizer Monitor, Operator Panel Keypad and LCD Display Screen are 10-inch.
Question: What is the 2715-B10CA-B Panelview 5500 Touch Digitizer Glass, Membrane Keyboard and LCD Display HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
275-B10CA-B
2715-B10A-B
2175-B10CA-B
2715-1B0CA-B
27115-B10CA-B
