UniOP ER-25T-0045 HMI Touch Screen Front Overlay

group name: UniOP Exor HMI

Min Order: 1 piece

brand name: VICPAS

model: ER-25T-0045

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 20:29:44 GMT

contact supplier

Paramtents

Brand UniOP
Warranty 365 Days
Product Line UniOP series
Supply ER-25T-0045 Protective Film Touch Screen Repair
Size 9.6 inch

Packging & Delivery

Min Order1 piece

Briefing

UniOP ER-25T-0045 Protective Film Touch Screen Panel Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

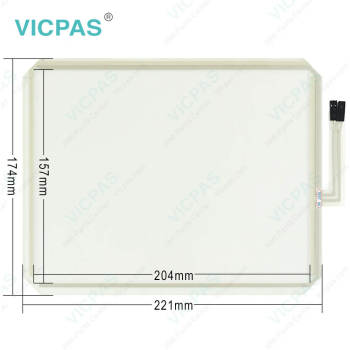

UniOP series HMI ER-25T-0045 Touch Screen Panel Front Overlay Repair

UniOP series HMI ER-25T-0045 Touchscreen Front Overlay Repair Kit

ER-25T-0045 Touch Screen Protective Film IHM Highlights
• 9.6” diagonal graphic monochrome LCD display
• Available in TFT color, and monochrome
• VGA (640x480 pixels) resolution
• Shows up to 30 rows, 80 characters of information
• Resistive ER-25T-0045 touch screen
• Connection to industrial bus systems and Ethernet (requires optional plug-in modules)
• Compatible with HMIcontrol and local I/O subsystems
• Large memory size (8 MB Flash) on removable media
• IP65 front panel protection
• Programmable with UniOP Designer version 5.08

The ER-25T-0045 HMI Panel Glass Front Overlay Terminal are state-of-the-art HMI devices with a touch screen interface and a 10.4” graphic display (9.6” for monochrome version). The novel aluminum bezel offers a rugged and convenient flat design and an appealing look.

Contact Best Price

Specifications:

The table below describes the parameters of the ER-25T-0045 UniOP Touchscreen Overlay.

Part Number:	ER-25T-0045
Display Type:	Monochrome LCD
Resolution:	640x480 pixel
Backlight:	CCFL
Warranty:	365 Days

Input Power:	24VDC (+10%, -15%)
Operating Temperature:	0 to 45 °C
Display Size:	9.6 in
Touch screen:	Resistive

Related UniOP Series Part No. :

UniOP eTOP	Description	Inventory status
ECT-VGA-0045	Exor UniOP Touch Screen Monitor Overlay Repair	In Stock
EK-41 6ZA925-7	Membrane Keyboard Keypad UniOP Replacement	Available Now
EK-42 6ZA987-7	UniOP Membrane Keypad Switch Repair Part	In Stock
EL-25T-0042	Exor UniOP Touch Screen Panel Protective Film	In Stock
ER-25T-0045	UniOP HMI Touch Screen Front Overlay Replacement	In Stock
ERT-16-0042	HMI Panel Glass Overlay Exor UniOP Repair	Available Now
ERT-16-0045	Exor UniOP Front Overlay Touch Panel Glass	In Stock
ERT-16-2945	UniOP Touch Screen Protective Film Repair Kit	Available Now
ETT-VGA-0045	UniOP Touch Digitizer Protective Film Replacement	In Stock
ETT-VGA-6545	HMI Panel Glass Overlay Replacement Repair	Available Now
TECT-VGA-0345	Exor UniOP HMI Panel Glass Front Overlay	In Stock
Exor UniOP HMI	Description	Inventory status

Exor UniOP HMI Manuals PDF Download:

UniOP ETT-VGA User Manual

UniOP User's Manual

UniOP Universal Operator Panels Installation Guide

UniOP Touch & Controls PDF

UniOP Manual

UniOP Installation Guide

FAQ:

Question: How to cleaning ER-25T-0045 Touch Panel Glass Overlay IHM faceplates?

Answer: The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents.

Question: What is Exor UniOP ER-25T-0045 Touchscreen Calibration?

Answer:

Standard calibration:

1. Recall Configuration Mode

2. Touch the CLEAR key on the ER-25T-0045 screen until a small round symbol will appear on the top right corner of the screen

3. touch and hold the symbol until it will move to the low left corner of the ER-25T-0045 screen

4. touch and hold the symbol until the indication to touch the ← key will be displayed on the screen

5. touch and hold the key ← until the indication to touch the ↓ key will be displayed on the screen

6. touch and hold the key ↓ until the indication to touch the Enter key will be displayed on the screen

7. touch and hold the Enter key until the panel will switch to Operation Mode (if a valid project is loaded in the memory)

Emergency calibration.

The Emergency calibration procedure should be used in all cases when it would result not possible to go to calibration using the standard procedure.

1. Switch of the unit

2. turn on the unit

3. tap in the middle of the touchscreen with a frequency of about one second until the operator panel will enter the Calibration Mode

4. perform the standard calibration procedure.

Common misspellings:

R-25T-0045
ER-5T-0045
ER-25T-00454
ER-257-0045
ER-25TT-0045
