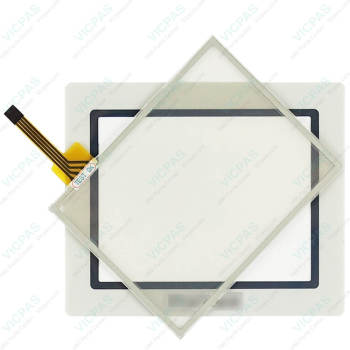

LM4201TADDC PFXLM4201TADDC Front Overlay Touch Membrane

Order each part separately is available

The following rules must be applied when wiring a LM4201TADDC PFXLM4201TADDC Touch Membrane Protective Film LT:
 Input/Output and communication wiring must be kept separate from the power wiring. Route these 2 types of wiring in separate cable ducting.
 Verify that the operating conditions and environment are within specification.
 Use proper wire sizes to meet voltage and current requirements.
 Use copper conductors.
 Use twisted-pair, shielded cables for analog, and/or fast Input/Output.
 Use twisted-pair, shielded cables for networks, and fieldbus.
 For the power connector, refer to DC power supply wiring diagram.
 When terminals A2 and B2 (signal name: Q1, Q0) are wired to external I/O, use the same power source for external I/O and the LM4201TADDC PFXLM4201TADDC Front Overlay HMI Panel Glass LT. Refer to Power Supply Connections.
 If you use a temperature sensor with thermocouple inputs, make sure you use the compensation cable.
 Prevent temperature changes to the thermocouple connection terminal. Correct temperature measurement may not be possible if the thermocouple cold junction (LT's thermocouple compensation wiring to the connection terminal) experiences temperature changes.

Be aware of the following items when building the LM4201TADDC PFXLM4201TADDC Protective Film Touch Panel LT into an end-use product:
• The LT unit's rear face is not approved as an enclosure. When building the LT unit into an end-use product, be sure to use an enclosure that satisfies standards as the end-use product's overall enclosure.
• The LM4201TADDC PFXLM4201TADDC Protective Film Touch Digitizer Glass LT unit must be used indoors only.
• Install and operate the LM4201TADDC PFXLM4201TADDC Front Overlay Touch Membrane LT with its front panel facing outwards.
• If the LT is mounted so as to cool itself naturally, be sure to install it in a vertical panel. Also, it's recommended that the LT should be mounted at least 100 mm away from any other adjacent structures or machine parts. The temperature must be checked on the final product in which the LT is installed.
• For use on a flat surface of a Type 4X (Indoor Use Only) and/or Type 13 Enclosure.
