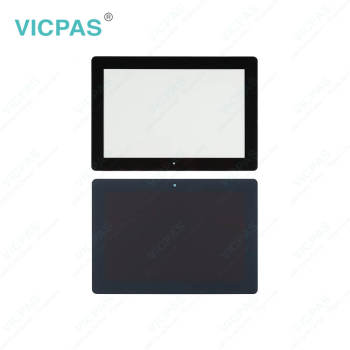

Trimble XCN-1060 134000 Touch Screen Monitor LCD Display
- group name
- Trimble
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- XCN-1060 134000
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 22 Feb 2025 02:26:04 GMT
Paramtents
Brand Trimble
Warranty 365 Days
Product Line Trimble series
Supply XCN-1060 134000 Touch Screen Panel LCD Screen
Model XCN-1060 134000
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Trimble series XCN-1060 134000 LCD Display Panel Touch Screen Tablet Repair Part
Order each part separately is available
The Trimble® XCN-1060 134000 display is an in-cab XCN-1060 134000 touchscreen display that provides affordable guidance, steering and precision agriculture functionality. The Trimble XCN-1060 134000 display Touch screen panel glass includes a built-in GPS receiver that you can upgrade to receive GLONASS satellite signals. The Trimble XCN-1060 134000 display Touch Panel is used in agricultural applications to maximize efficiency in activities such as planting, spraying, spreading and strip tilling.
VICPAS supplies Trimble XCN-1060 134000 Trimble LCD Screen and Touchscreen glass with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Trimble XCN-1060 134000 Trimble HMI Panel Glass LCD Display Screen.
| Part Number: | XCN-1060 134000 |
| Screen diagonal: | 10 inch |
| Warranty: | 365 Days |
| Product Line: | Trimble Series |
| Input Power: | +24 VDC +/-20% |
| Resolution: | |
| Storage Temperature: | -20°C to 60°C |
| Display Size: | STN |
Related Trimble Series Part No. :
| Trimble HMI | Description | Inventory status |
| GFX-1060 | Trimble Touch Screen Glass LCD Display Replacement | In Stock |
| CASE IH AFS PRO 1200 Display | Trimble Touch Panel Glass Replacement Repair | Available Now |
| GFX-1260 12.1 | Trimble Touch Screen Panel Repair Replacement | In Stock |
| GFX-750 | Trimble LCD Display Panel Touch Screen Monitor Replacement | Available Now |
| XCN-1050 121000 | Trimble LCD Screen Touch Digitizer Repair | In Stock |
| XCN-1060 134000 | Trimble HMI Touch Screen Organizer LCD Display Screen Replacement | In Stock |
| XCN-1260 137000 12.1 | Trimble Touch Panel Glass Replacement | In Stock |
| XCN-750 124000 | Trimble LCD Display Panel Touch Screen Panel Repair Replacement | Available Now |
| Trimble HMI | Description | Inventory status |
Trimble Series HMI Manuals PDF Download:
FAQ:
Question: How to install the Trimble XCN-1060 134000 display?
Answer: To install the Trimble XCN-1060 (134000) display, follow these detailed steps:
Preparation
1. Gather Required Tools and Materials:
- Mounting bracket and screws
- Power and data cables
- Tools for installation (screwdriver, wrench, etc.)
2. Choose Installation Location:
- Select a location in the vehicle that provides good visibility and is easily accessible.
Installation Steps
3. Mounting the Display:
- Attach the mounting bracket to the chosen location using screws.
- Secure the XCN-1060 display to the mounting bracket.
4. Connecting Power:
- Locate the power cable specific to the display.
- Connect the power cable to the display’s power input.
- Ensure that the vehicle's electrical system can support the display's power requirements.
5. Connecting to GNSS Receiver (if applicable):
- If using an external GNSS receiver, connect it to the appropriate port on the XCN-1060.
- Use a compatible cable assembly for this connection.
6. Wiring Harness Installation:
- Route any additional wiring harnesses from the display to other necessary components (e.g., NAV-500 or NAV-900 guidance controller).
- Secure loose wires with zip ties to prevent interference during operation.
7. Final Checks:
- Inspect all connections for tightness and security.
- Ensure there are no exposed wires or loose components.
8. Power On:
- Turn on your vehicle and power up the XCN-1060 display.
- Follow any on-screen prompts for initial setup and calibration.
Post-Installation
9. Calibration and Configuration:
- After installation, calibrate the display according to your operational needs.
- Configure settings using the Precision-IQ application interface as required.
For more detailed instructions, refer to the [GFX/XCN Display Series Installation User Guide] or consult with your authorized Trimble dealer for assistance.
Question: What is the dimension of Trimble XCN-1060 134000 Trimble Touch Panel Glass?
Answer: The dimension of Trimble XCN-1060 134000 HMI touch membrane is 10 inch.
