XCN-1260 137000 12.1 Touch Screen Monitor LCD Display
- group name
- Trimble
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- XCN-1260 137000 12.1
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 22 Feb 2025 02:10:42 GMT
Paramtents
Brand Trimble
Warranty 365 Days
Product Line Trimble series
Supply XCN-1260 137000 12.1 Touch Screen Panel LCD Screen
Model XCN-1260 137000 12.1
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

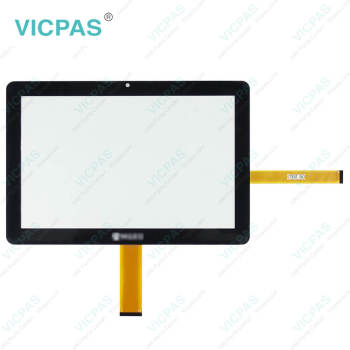

Trimble series XCN-1260 137000 12.1 LCD Display Panel Touch Screen Tablet Repair Part
Order each part separately is available
The Trimble® XCN-1260 137000 12.1 display is an in-cab XCN-1260 137000 12.1 touchscreen display that provides affordable guidance, steering and precision agriculture functionality. The Trimble XCN-1260 137000 12.1 display Touch screen panel glass includes a built-in GPS receiver that you can upgrade to receive GLONASS satellite signals. The Trimble XCN-1260 137000 12.1 display Touch Panel is used in agricultural applications to maximize efficiency in activities such as planting, spraying, spreading and strip tilling.
VICPAS supplies XCN-1260 137000 12.1 Trimble LCD Screen and Touchscreen glass with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the XCN-1260 137000 12.1 Trimble HMI Panel Glass LCD Display Screen.
| Part Number: | XCN-1260 137000 12.1 |
| Screen diagonal: | 12 inch |
| Warranty: | 365 Days |
| Product Line: | Trimble Series |
| Input Power: | +24 VDC +/-20% |
| Resolution: | |
| Storage Temperature: | -20°C to 60°C |
| Display Size: | STN |
Related Trimble Series Part No. :
| Trimble HMI | Description | Inventory status |
| GFX-1060 | Trimble Touch Screen Glass LCD Display Replacement | In Stock |
| CASE IH AFS PRO 1200 Display | Trimble Touch Panel Glass Replacement Repair | Available Now |
| GFX-1260 12.1 | Trimble Touch Screen Panel Repair Replacement | In Stock |
| GFX-750 | Trimble LCD Display Panel Touch Screen Monitor Replacement | Available Now |
| XCN-1050 121000 | Trimble LCD Screen Touch Digitizer Repair | In Stock |
| XCN-1060 134000 | Trimble HMI Touch Screen Organizer LCD Display Screen Replacement | In Stock |
| XCN-1260 137000 12.1 | Trimble Touch Panel Glass Replacement | In Stock |
| XCN-750 124000 | Trimble LCD Display Panel Touch Screen Panel Repair Replacement | Available Now |
| Trimble HMI | Description | Inventory status |
Trimble Series HMI Manuals PDF Download:
FAQ:
Question: What are the steps to connect the Trimble XCN-1260 to a GNSS controller?
Answer: To connect the Trimble XCN-1260 display to a GNSS controller, follow these steps:
Preparation
1. Gather Required Equipment:
- Ensure you have the XCN-1260 display and the compatible GNSS controller (NAV-500 or NAV-900).
- Have the necessary cables ready for connection.
Connection Steps
2. Mount the Display:
- Install the XCN-1260 display in a suitable location within the vehicle, ensuring visibility and accessibility.
3. Power Connections:
- Connect the power cable from the display to a suitable power source in the vehicle.
4. Connect to GNSS Controller:
- Use an Ethernet cable to connect the XCN-1260 display to the GNSS controller.
- Plug one end of the Ethernet cable into the "Ethernet port/power in" on the GNSS controller.
- Connect the other end to the corresponding Ethernet port on the XCN-1260 display.
5. Check Connections:
- Ensure that all connections are secure and that there are no loose cables.
6. Power On:
- Turn on both the XCN-1260 display and the GNSS controller.
7. Configure Settings:
- On the XCN-1260, navigate to the settings menu.
- Select "Connections" and ensure that the GNSS controller is recognized.
- If necessary, configure any additional settings related to guidance or data input.
8. Verify Connection:
- Once powered on, check that the display is receiving data from the GNSS controller.
- You may need to perform a test run to ensure that guidance systems are functioning as expected.
Post-Connection
9. Calibration and Configuration:
- After establishing a connection, calibrate both devices as needed for your specific operational requirements using the Precision-IQ interface.
For detailed information, refer to the [GFX/XCN Display Series Installation and User Guide] or consult with your authorized Trimble dealer for assistance.
