B&R 5MP7140.070N-000 Keypad Membrane Repair

group name: Mobile Panel

Min Order: 1 piece

brand name: VICPAS

model: 5MP7140.070N-000

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 01 Nov 2025 04:01:51 GMT

contact supplier

Paramtents

Brand B&R
Size 7 inch
Model B&R Mobile Panel 7100 5MP7140.070N-000
Warranty 1 Year VICPAS Warranty
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

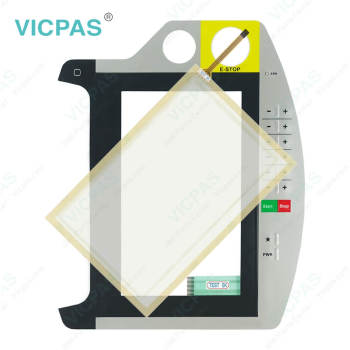

B&R Mobile Panel 7100 5MP7140.070N-000 Touch Screen Membrane Keypad LCD Screen Outer Casing. 365-Day Warranty-Fully Tested-Worldwide Shipping

Detailed

B&R Mobile Panel 7100 5MP7140.070N-000 Terminal Keypad Touch Digitizer Glass Plastic Enclosure LCD Display Screen

Order each part separately is available

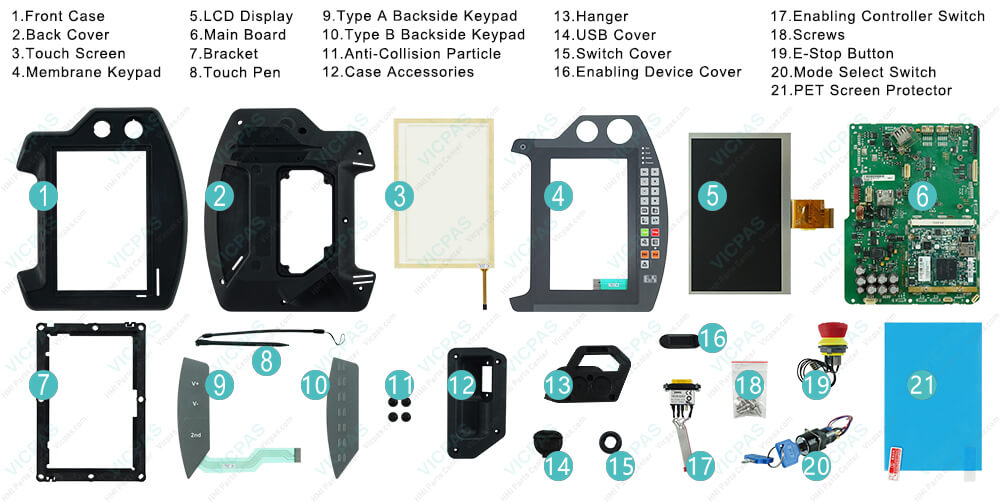

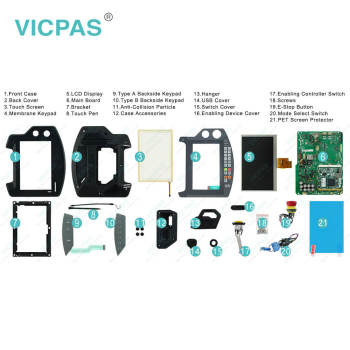

Mobile Panel 7100 Membrane Keyboard, Touch Screen Glass, LCD Screen, Plastic Cover Body, Main Board, Bracket, Touch Pen, Backside Keypad, Anti-Collision Particle, Case Accessories, Hanger, USB Cover, Switch Cover, Enabling Device Cover, Enabling Controller Switch, Screws, E-Stop Button, Mode Select Switch, PET Screen Protector

VICPAS supply B and R Mobile Panel 7100 5MP7140.070N-000 membrane keypad keyboard, LCD Display Screen, Front Cover, Back Cover, Main Board, Bracket, Touch Pen, Backside Keypad, Anti-Collision Particle, Case Accessories, Hanger, USB Cover, Switch Cover, Enabling Device Cover, Enabling Controller Switch, Screws, E-Stop Button, Mode Select Switch, PET Screen Protector and HMI Panel Glass for repair replacement, make the HMI running. We provide a 365-day VICPAS warranty on most products, which include most touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.

The Mobile Panel is a portable operating and display device featuring a rugged design and Windows CE-compatible electronics. Equipped with a powerful processor and Ethernet, the Mobile Panel is optimally suited for many different applications. Depending on the variant, Mobile Panel devices can have a 3.8" QVGA grayscale display without a touch screen or a 6.5" VGA color display with a touch screen.

Mobile Panel devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables

Contact Best Price

Specifications:

The table below describes the parameters of the 5MP7140.070N-000 Mobile Panel 7100 Membrane Keypad Touch Panel LCD Display Panel Plastic Shell.

Part Number :	5MP7140.070N-000
Product Line:	Mobile Panel 7100
Screen diagonal:	7 in
Warranty:	365 Days Warranty
Input Power:	24 VDC

Display Type:	TFT color
Mounting position:	Vertical
Input Type:	Keypad
Serial interface Type:	RS232
Storage:	-20 to 60°C

Related B&R Mobile Panel 7100 Series Part No. :

B&R Mobile Panel 7100	Description	Inventory status
5MP7120.034F-000	B&R Mobile Panel 7100 Operator Keyboard HMI Panel Glass	In Stock
5MP7121.034F-000	Mobile Panel 7100 Keyboard Membrane Touch Screen Monitor Repair	Available Now
5MP7140.070N-000	B&R Mobile Panel 7100 MMI Touch Screen Switch Membrane Replacement	In Stock
5MP7150.101E-000	Mobile Panel 7100 B and R HMI Terminal Keypad Touch Digitizer	Available Now
5MP7151.101E-000	Mobile Panel 7100 Touch Screen Keyboard Membrane Repair	In Stock
5MP7151.101E-001	B&R Mobile Panel 7100 Touch Panel Membrane Keypad Keyboard	In Stock
B and R MP7100	Description	Inventory status

B&R Mobile Panel 7100 Manuals PDF Download:

B&R Mobile Panel 7100 User's manual

FAQ:

Question: What measures can be taken against preventing after-image effect in B&R Mobile Panel 7100 5MP7140.070N-000 LCD/TFT monitors?

Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.

Question: What is the procedure of creating a bootable USB flash drive for B&R 5MP7140.070N-000 upgrade files?

Answer:
• Connect the USB flash drive to the PC.
• If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
• Mark the desired USB flash drive in the drive list.
• Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
• Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
• In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
• Click on the Start action button in the toolbar.

Question: What is the B&R Mobile Panel 7100 5MP7140.070N-000 terminal keypad price?

Answer: Submit a fast quote, send VICPAS an email for best price.
