Koyo C-more Panels EA9-T15CL-R Touch Glass Protective Film
- group name
- C-more EA9 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- EA9-T15CL-R
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:22:22 GMT
Paramtents
Brand KOYO
Size 15 inch
10.4 inch 365 Days
Product Line Koyo C-more EA9 Series
Supply EA9-T15CL-R Touch Screen Protective Film
Shipping 2-4 workdays
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

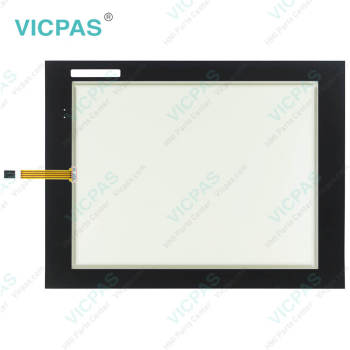

Koyo C-more Touch Panel EA9 Series EA9-T15CL-R Protective Film Touch Pad Replacement
Koyo EA9 Series EA9-T15CL-R Front Overlay Touch Membrane Terminal Features
• 5.7" diagonal color TFT (Thin Film Transistor) LCD display with 64K colors
• 320 x 240 pixel resolution
• 280 NITS display brightness
• 50,000 hour average backlight lifetime, user replaceable
• Analog resistive (1024 X 1024) touch screen allowing unlimited touch areas
• USB port B (program/download) and USB port A (USB device options)
• Ethernet 10/100 Base-T port (program/download & PLC comm)
• Remote Internet Access
• Serial PLC interface (RS-232/422/485)
• CompactFlash card slot, built-in
• Expansion assembly (optional) for CompactFlash devices (use with optional CF Card Interface Module)
• 24 VDC powered, 110 VAC power adapter (optional)
• Audio Line Out, stereo - requires amplifier and speaker(s)
• 10 MByte project memory
• Data logging
• 0 to 50°C (32 to 122°F) operating temperature range
• NEMA 4/4X, IP65 compliant when mounted correctly, indoor use only
• Slim design save panel space
• UL, cUL & CE agency approvals
• 2-year warranty from date of purchase
VICPAS supply Koyo C-more EA9 Series EA9-T15CL-R Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping. C-more EA9 series EA9-T15CL-R Front Overlay Touch Digitizer interface panel, 6-inch color TFT (5.7 inch viewable screen), 64K colors, 320 x 240 pixel QVGA screen resolution, 800MHz CPU, 12-24 VDC powered, NEMA 4/4X, IP65 (when mounted correctly; for indoor use only), non-replaceable LED backlight. Includes (3) serial ports, USB 2.0 Type A and B ports and Ethernet port; supports SD memory card. Compatible with EA9-PGMSW programming software version 5.0 or later.
Specifications:
The table below describes the parameters of the Koyo C-more Touch Panel EA9-T15CL-R Touch Screen Protective Film HMI Parts.
| Ambient temperature: | 0°C (32°F) to 50°C (122°F) |
| Display Resolution: | 1024 x 768 pixels |
| Model Number: | EA9-T15CL-R |
| Product Line: | Koyo C-more EA9 |
| Touch Size: | 15" |
| Brand: | KOYO |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Storage Temperature: | -20°C (-4°F) to 60°C (140°F) |
| Warranty: | 365 Days |
Related Koyo C-more Touch Panels EA9 Series HMI Part No. :
| KOYO EA9 | Description | Inventory status |
| EA9-T6CL | KOYO Touch Panels EA9 Front Overlay Touch Membrane | In Stock |
| EA9-T6CL-R | Koyo C-more Panels EA9 Series Touch Glass Front Overlay Repair | In Stock |
| EA9-T7CL | Koyo C-more Panels EA9 Series Touch Digitizer Glass Overlay Repair | Available Now |
| EA9-T7CL-R | KOYO Touch Panels EA9 HMI Panel Glass Protective Film | Available Now |
| EA9-T8CL | Koyo C-more Panels EA9 Series Touch Screen Monitor Front Overlay | In Stock |
| EA9-T10C | Koyo C-more Panels EA9 Series Front Overlay MMI Touch Screen Replacement | In Stock |
| EA9-T10CL | Koyo C-more Panels EA9 Series HMI Touch Screen Protective Film | Available Now |
| EA9-T10WCL | Koyo C-more Panels EA9 Series Protective Film Touchscreen Repair | In Stock |
| EA9-T12CL | Koyo C-more Panels EA9 Series HMI Protective Film Touch Screen Glass | Available Now |
| EA9-T15CL | Koyo C-more Panels EA9 Series Front Overlay Touch Screen Panel Repair | In Stock |
| EA9-T15CL-R | KOYO Panels EA9 Series Touch Screen Protective Film Replacement | In Stock |
| C-more Panel EA9 | Description | Inventory status |
KOYO C-more Touch Panels EA-9 Series HMI Manuals PDF Download:
FAQ:
Question: Access the EA9-T15CL-R Touch Panel Setup Screens
Solution:
• Access the Main Menu of the touch panel System Setup Screens by pressing the extreme upper left corner of the panel display area for three (3) seconds as shown below.
• Adjust the time and date for the panel by pressing the Setting button on the Main Menu, then press the Adjust Clock button on the Setting screen.
• Use the right pointing arrows for the time or date display to select the unit to change. Use the up and down arrows to increment or decrement the value for the selected unit.
• Press OK when done to accept the changes to the time and date that is retained in the touch panel's battery backed memory, or press Cancel to exit the Adjust Clock setup screen without making any changes.
• Press the Main Menu button on the Setting screen and then the Exit button on the Main Menu screen to return to the application screen.
Common misspellings:
EA9-T5CL-REA9-T15C-R
AE9-T15CL-R
EA9-715CL-R
EA9-T15CL--R
